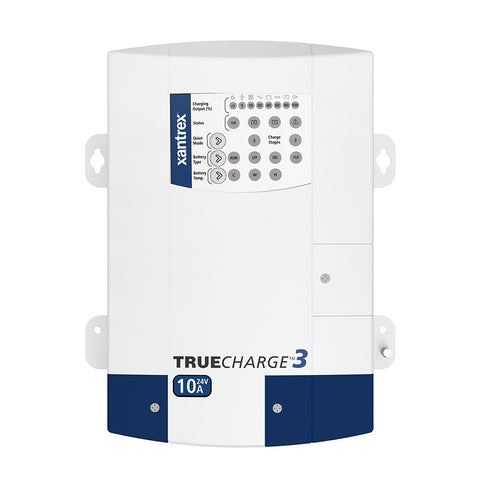

TRUEcharge™3 10A 3 Bank Battery Charger - 24V

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.

Features:

Microprocessor-controlled, multistage charging algorithms
Settings for two and three-stage charging
Battery-equalization feature
Settings for flooded, gel, AGM, or lithium-ion batteries
Equipped with parallel stacking (remote panel required)
Ability to charge batteries drained to extremely low voltage
Added quiet mode

Protection Features:

Reverse-battery polarity protection
Drip-proof design
DC over-voltage protection
Over-temperature protection
Circuit breaker protection

Three-Stage Charging

Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages:

Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate
Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate
Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate

Power Factor Corrected (PFC) Charging

Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.

Electrical Specifications (@ 25 degrees C unless otherwise noted):

Output Current (nominal): 10 A
Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc
DC Output Connections: Three
AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal
Temperature Compensation: Three settings
Charger Efficiency: > 80%
Battery Type: Gel, Flooded, AGM, LiFePO4
Minimum Recommended Battery Bank Size: 20 Ah

General Specifications:

Operating Temperature Range: 0–60°C (32–140°F)
Storage Temperature -40–80°C (-40–176°F)
Battery Connection: Three positive terminals and one negative terminal
Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”)
Weight 2.2 kg (4.8 lb)

Regulatory Approvals

Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

Specifications:

Charger Output - Amps: 10a
Charger Output Voltage: 24v
Charging Banks: 3
Portable: No

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Xantrex TRUEcharge3 10A 3 Bank Battery Charger - 24V [804-2410-10]
