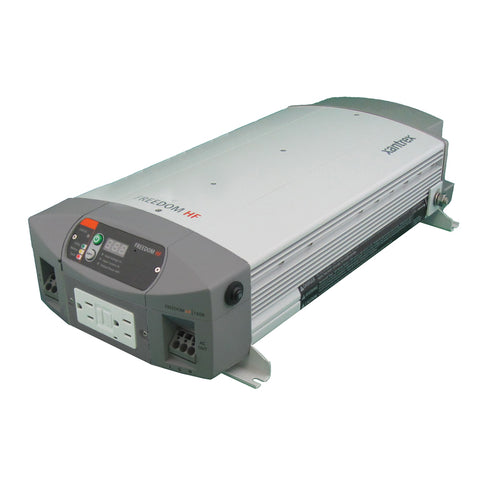

Freedom HF 1000

Compact inverter/charger to power the comforts of home on your boat, RV, or truck

With modified sine wave output, Freedom HF 1000 inverter/charger is designed to run entertainment systems and small appliances in smaller boats, RV's and trucks. The Freedom XMIC inverter/charger is the smallest, lightest, and least expensive model in the Xantrex lineup.

Freedom HF is designed for demanding marine and RV conditions. Temperature-controlled multistage charging ensures that your batteries are recharged safely and efficiently. Both models include an automatic transfer switch and a detachable digital remote control panel display that provides precise system information and can be mounted wherever you require the information.

Product Features:

Designed to power loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
Removable digital display to provide system status
Automatic three-stage battery charger
Designed to be hardwired using a terminal strip, or by connecting AC through GFIC receptacles (Included)
Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features:

Battery over-voltage and under-voltage protection
Over-temperature shutdown
Automatic overload protection
Short-circuit protection
Ground-fault protection
ETL listed for use in mobile RV and marine applications

Specifications:

Inverter Output Voltage: 120v
Inverter Input Voltage: 12v
Charger Input - Voltage: 120v
Outlet Qty: 1 Duplex GFCI
Charging Banks: 1
Inverter Cont. Output Wattage: 1000w
Charger Output Voltage: 12v
Charger Output - Amps: 20a
Box Dimensions: 6"H x 11"W x 18"L WT: 12.95 lbs
UPC: 715535890414

Quick Guide (pdf)
Owner's Manual (pdf)

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Xantrex Freedom HF 1000 Inverter/Charger [806-1020]
