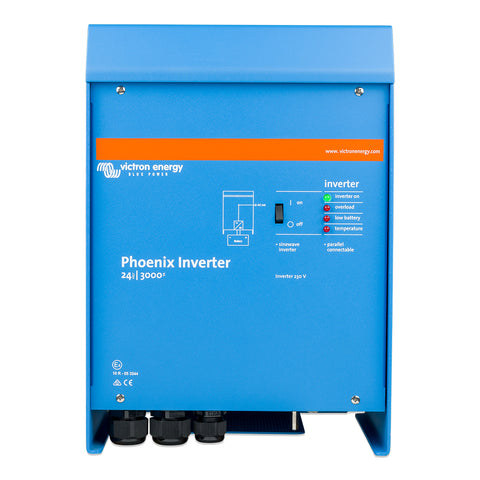

Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz - VE. Bus

Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising on performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.

Parallel & 3-phase Operation Capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in a 3-phase configuration is also possible.

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

Waveform: Pure Sine Wave
Outlet Qty: None
Inverter Surge Rating: 6000w
Inverter Output Voltage: 120v
Inverter Input Voltage: 19-33v
Inverter Cont. Output Wattage: 3000w
GFCI: No
DC Connection Type: Hardwire
AC Connection Type: Hardwire
Box Dimensions: 13"H x 13"W x 18"L WT: 47 lbs
UPC: 8719076023739

Quick Guide (pdf)
Brochure (pdf)

Victron Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz -VE.Bus [PIN243020100]
