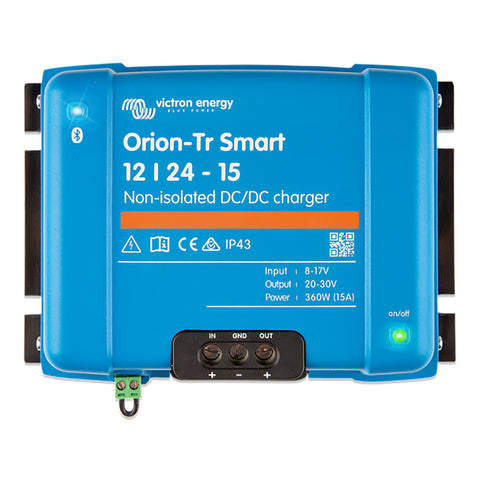

Orion-TR Smart 12/24-15 15A (360W) Non-Isolated DC-DC or Power Supply

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

Charger Input - Voltage: 12v
Charger Output - Amps: 15a
Charger Output Voltage: 24v
Charging Banks: 1
Portable: No
Box Dimensions: 4"H x 6"W x 9"L WT: 4.3 lbs
UPC: 8719076048961

Quick Guide (pdf)

Victron Orion-TR Smart 12/24-15 15A (360W) Non-Isolated DC-DC or Power Supply [ORI122436140]
