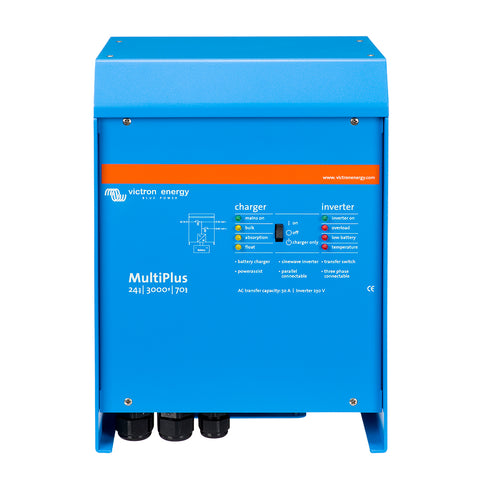

Multiplus Inverter/Charger 24VDC - 3000VA - 70AMP Battery Charger - 50AMP Transfer Switch (UL LISTED)

Features:

Multifunctional -The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Unique PowerAssist feature - The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery
Uninterrupted AC power (UPS function) - In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Virtually unlimited power thanks to parallel operation -Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring and Control - Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more...

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

Outlet Qty: None
Inverter Output Voltage: 120v
Inverter Input Voltage: 19-33v
Inverter Cont. Output Wattage: 3000w
Charger Output Voltage: 24v
Charger Output - Amps: 70a
Charger Input - Voltage: 94-140v
Charging Banks: 1+1
Box Dimensions: 13"H x 13"W x 18"L WT: 47.25 lbs
UPC: 8719076046622

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Victron Multiplus Inverter/Charger 24V DC - 3000W - 120V AC w/70AMP Battery Charger - 50AMP Transfer Switch (UL LISTED) [PMP242301102]
