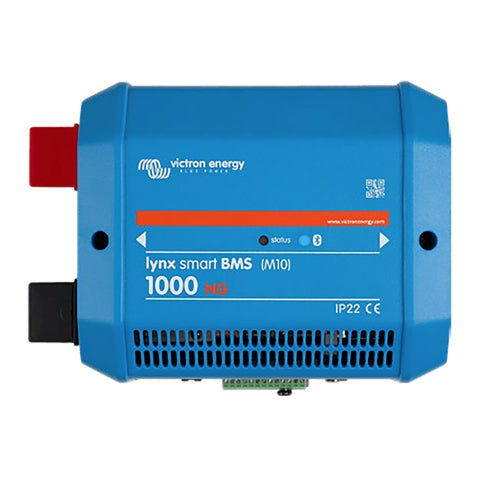

Lynx Smart BMS 1000 NG (M10) MGMT System

The Lynx Smart BMS NG is a dedicated Battery Management System (BMS) designed specifically for the Victron Lithium NG batteries. These batteries utilize Lithium Iron Phosphate (LiFePO4) technology and are available in 12.8 V, 25.6 V, and 51.2 V variants with various capacities. They can be configured in series, parallel, and series/parallel arrangements, allowing for the creation of battery banks with system voltages of 12V, 24V, or 48V. The maximum number of batteries in a single system is 50, enabling a maximum energy storage of 192kWh in a 12V system and up to 384kWh in a 24V and 48V system. For comprehensive details about these batteries, visit the Victron Lithium NG battery product page.

Out of the various BMSes available* for the Lithium NG batteries, the Lynx Smart BMS NG is the most feature-rich and complete option and integrates seamlessly with other M10 products in the Lynx Distributor system. It is available in 500 A (M10) and 1000 A (M10) versions¹).

Built-in 500 A or 1000 A Contactor

Lynx Smart BMS NG 500A A Lynx Smart BMS NG 1000A
Available in 500 A (M10) and 1000 A (M10) versions
Acts as a secondary safety system to protect the battery in case primary controls (ATC, ATD, and/or DVCC) fail
Suitable as a remote controllable main system switch

Pre-charge Circuit

Prevents high inrush currents when connecting capacitive loads like inverters
Eliminates the need for external pre-charging devices

Monitoring & Control

Bluetooth connectivity for monitoring and control via the VictronConnect App or VE.Can connectivity in combination with GX devices such as the Cerbo GX or Ekrano GX and the VRM portal
Readout of cell voltages and temperatures also on GX devices and the VRM portal
Built-in battery monitor provides data such as state of charge, voltage, current, historical data, status info, and more in real-time
Diagnostic at a glance with Instant Readout

DVCC Closed Loop Control as well as ATC/ATD Contacts

Compatible Victron inverter/chargers, the Orion XS 12/12-50A DC-DC battery charger, and solar charge controllers are automatically controlled via a connected GX device and DVCC.
ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port

Programmable Relay

Can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable)
Features Alternator ATC mode for safe alternator disconnection before battery disconnects

AUX Terminal

Onboard auxiliary power supply (1.1 A @ system voltage) for powering specific loads (i.e. a GX device) post-BMS shutdown
Automatic shutdown of BMS and AUX connection if no charge voltage is detected within 5 minutes after a low voltage event

VE.Can and NMEA 2000 Data Communication

Easy connection and communication with GX devices via VE.Can using a standard RJ45 network cable
Integration into marine networks via NMEA 2000 protocol (requires a VE.Can to NMEA 2000 micro-C male cable)

Lynx Distributor Fuse Monitoring

Monitor fuse status of up to 4 connected Lynx Distributors via VictronConnect or GX devices
Receive alarms in case of blown fuses

¹) Up to 5 BMS-es can be paralleled. This requires a firmware update, expected in Q3 2024.

Specifications

Power:

Battery Voltage Range: 9 – 60 VDC
Maximum Input Voltage: 75 VDC
Supported System Voltages: 12, 24, or 48 V
Reverse Polarity Protection: No
Main Safety Contactor Continuous Current Rating: 1000 A continuous
Main Safety Contactor Peak Current Rating: 1200 A for 5 minutes
Power Consumption OFF Mode: 0.3 mA for all system voltages
Power Consumption in Standby Mode: Approximately 0.6 W (50 mA at 12 V)
Power Consumption in ON Mode: Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays
Minimum Load Resistance for Pre-Charging: 10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
AUX Output Maximum Current Rating: 1.1 A continuous, protected by resettable fuse
Allow-to-Charge Port Maximum Current Rating: 0.5 A at 60 VDC, protected by resettable fuse
Allow-to-Discharge Port Maximum Current Rating: 0.5 A at 60VDC, protected by resettable fuse
Alarm Relay (SPDT) Maximum Current Rating: 2 A at 60 VDC

Connections:

Busbar: M10 (Torque: 33 Nm) – can be combined with all M10 Lynx products
VE.Can: RJ45
I/O: Removable multi-connector with screw terminals
Battery BTV Cables: Male and female circular 3-pole connector with M8 screw ring Up to 50 batteries can be connected in one system
Lynx Distributor Fuse Monitoring (up to 4 modules): RJ10 (cable ships with each Lynx Distributor)

Physical:

Enclosure Material: ABS
Enclosure Dimensions (H x W x D): 230 x 180 x 100 mm
Unit Weight: 2.7 kg
Busbar Material: Tinned copper
Busbar Dimensions (H x W): 8 x 30 mm

Environmental:

Operating Temperature Range: -40 °C to +60 °C
Storage Temperature Range: -40 °C to +60 °C
Humidity: Max. 95 % (non-condensing)
Protection Class: IP22

Standards:

Safety: EN-IEC 63000:2018
EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS: NEN-EN-ISO 9001:2015
