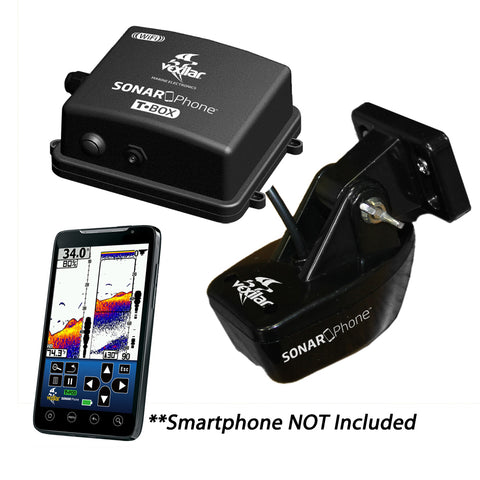

SP200 SonarPhone T-Box Permanent Installation Pack

Dual Beam Wi-Fi Fishfinder Technology You Can Share With Friends.

The SP200 Permanent Mount system is designed for installation in boats with easy access to a 12 volt power supply (not included).

As the name implies, SonarPhone turns your smart phone or tablet into a fully functional sonar system that will rival any high end sonar on the market today. Using Patented WiFi signal technology to transmit to smart phones or tablets. You don't need cell phone coverage to use it, the SonarPhone will work anywhere in the world. The SonarPhone T-BOX creates its own WiFi hotspot and you can share your signal with as many people as you wish, the software App is downloaded for free from the App Store or Google Play and works with both Android and IOS systems.

With the powerful SP200 T-Box system, you can reach depths of 240' with a 200kHz, Dual-Beam (20/40°) skimmer style transducer and temp sensor. The Skimmer style transducer can be mounted externally on the transom of your boat for high speed use or internally in fiberglass hulls, but you will lose the temp sensor option for in-hull installations.

Also, included in the SP200 package is a 12V car plug/USB adaptor for powering your tablets or re-charging your phones.

Features:

Compatibility: iOS 4.3 (iPhone, iPad) and Android 2.0
Free App download
Automatic Ranging
Water Temperature & Depth Indicator
Audible Alarms for Fish, Shallow and Low Battery
Fish Icon
Zoom Bottom Track
Noise Rejection
Surface Clarity
Battery Indicator
1-year warranty

Specifications:

Depth Range Max: 240' (73M)
Depth Range Min: 2' (0.6M)
Sonar Frequency: 200/83KHz Duel Beam
Cone Angles: Dual Beam 20° or 40°
Sonar Power: 12V DC power
Audible Alarms: Fish, Shallow, Low Battery
Operational: -20 - 80°C
Wireless distance: 100 Yards (90M)

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Transducer Type: Transom Mount
Transducer Included: Yes
Box Dimensions: 5"H x 9"W x 11"L WT: 1.95 lbs
UPC: 052762130112

Brochure (pdf)

Vexilar SP200 SonarPhone T-Box Permanent Installation Pack [SP200]
