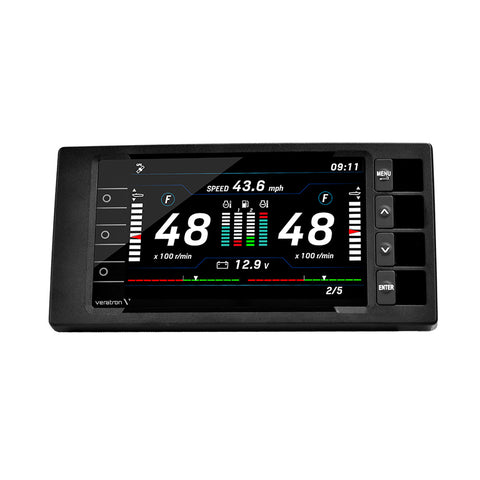

OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black

The new OceanLink® 7" multifunction TFT Display features a 24-bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 data pages with single, double, treble, or quad grid layouts.

TFT Displays can be daisy-chained with other OceanLink® gauges, displays, or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.

Features:

Touch screen function
Optically bonded mineral glass lens
Front & rear side protection rating IPX7
1x NMEA 2000® connector
2x J1939
6x Analog input
2x Frequency input
2x 4–20 mA
3x Digital input or 0–5 V
2x Alarm output
2x Video input
2x EasyLink data output
2x Programmable alarm output 500 mA
Operating temperature range -20°C/+70°C
12/24V

Specifications:

Instrument Function: Multifunction
Screen Size: 7"
Shape: Rectangular
Transducer Type: Not Included
Box Dimensions: 4"H x 8"W x 12"L WT: 3.35 lbs
UPC: 7640178724457

Quick Guide (pdf)
Owner's Manual (pdf)

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Veratron OceanLink 7" NMEA 2000 Certified TFT Gateway - Black [A2C1865330001]
