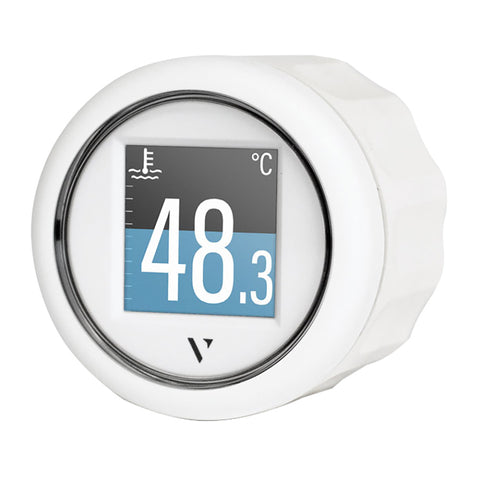

52mm (2-1/16") ViewLine Flex Gauge - J1939 - White

Veratron's VL Flex 52 - J1939 was designed to meet the rigorous demands of commercial use. Supporting a broad range of sensors, the all-in-one round gauge is singularly unique in that it can display two sets of diesel engine data simultaneously and is easily configured using a mobile device and the companion Veratron app.

The VL Flex 52 - J1939 supports input from analog sensors as well as J1939 and LIN 2.0. The simple but effective graphic design can be set up in a single or dual layout, pulling from up to 30 sets of data. It can display a large numerical value and colored bar graph that are viewable in any light condition due to its sun-readable PMMA lens with anti-glare.

*VL Flex Configurator App (Android or iOS) has to be downloaded - no charge

Supported Configurations:

Wheel Speed - Engine Load - Fuel Level - Oil Level - Oil Pressure - Boost Pressure - Coolant Pressure
Coolant Temp - Battery Current - Brake Pressure - Gear Oil Level - Gear Oil Pressure - Battery Potential
Air Temperature - Exhaust Temperature - Oil Temperature - Gear Oil Temperature - Fuel Rate
Fuel Economy - Engine Speed - Odometer - Engine Hours - Total Fuel - Clock - DEF/BLUE Level
Battery SOC/SOH - Battery Temperature - Battery Autonomy

Features:

1.44” sun-readable color TFT display
J1939 Interface
Front lens with anti-glare and anti-fog treatments
52mm (2-1/16") mounting diameter

In the Box:

VL Flex J1939
52mm Mounting SpinLock
8 Pole Cable
Safety Instructions

*Sold as an individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Box Set: No
Gauge Size: 2-1/16"
Gauge Type: Multifunction
Series: ViewLine
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs
UPC: 7640190290008

Owner's Manual (pdf)
Brochure (pdf)

Veratron 52mm (2-1/16") ViewLine Flex Gauge - J1939 - White [B00110901]
