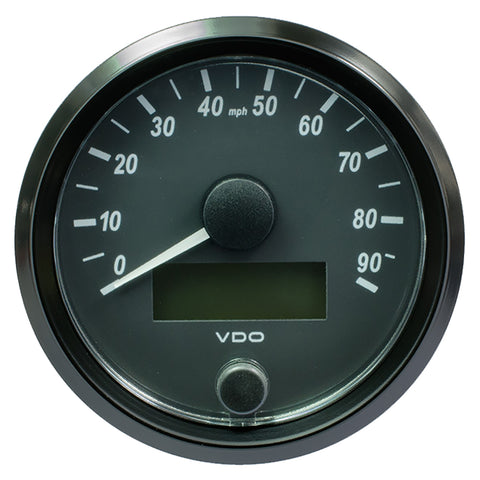

SingleViu 80mm (3-1/8") Speedometer - 90MPH

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.

These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

Features:

0-400kHz Default Input
RGB LED Illumination (default illumination set to White)
Water Resistant Front & Rear
Includes Wire Harness
Molex MX 150 8 and 12 Pin Connector
Voltage 12-24V
Spin-Lok™ Mounting Hardware
Analog Input

∗Sold as an Individual

Specifications:

Voltage - Input Range (Volts): 12-24V
Series: SingleViu
Gauge Type: Speedometer
Gauge Size: 80mm
Box Set: No
Box Dimensions: 4"H x 8"W x 8"L WT: 0.95 lbs
UPC: 4103590683366

Owner's Manual (pdf)

VDO SingleViu 80mm (3-1/8") Speedometer - 90MPH [A2C3832900030]
