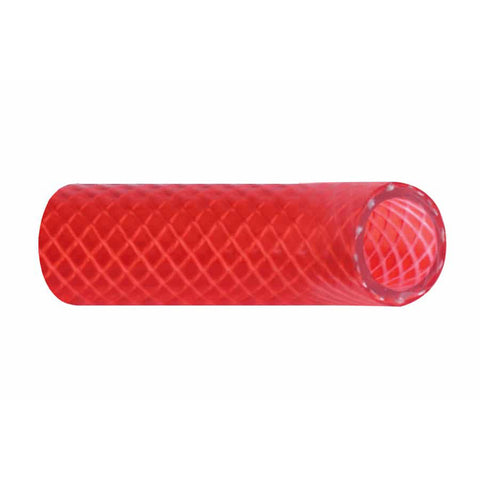

3/4" x 50' Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is nontoxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

The Red cover allows for easy identification of "Hot Water" lines on your boat
Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
This hose is safe for use with drinking water

Application:

Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

Tube & Cover: Clear FDA tube
Color: Red Transparent
Reinforcement: Polyester
Temperature Range: -18°F to 149°F (-28°C to 65°C)
Length: 50’ (15.24m)

Specifications:

Inner Diameter: (inch) 3/4" / (mm) 19
Outer Diameter: (inch) 1 / (mm) 25.4
Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
Bend Radius: (inch) 1.5" / (mm) 38

*Burst Pressure is 4 x Working Pressure

Specifications:

Length (Feet): 50'
ID Diameter (inches): 3/4"
Box Dimensions: 5"H x 18"W x 18"L WT: 11.1 lbs
UPC: 704917024066

Quick Guide (pdf)

Trident Marine 3/4" x 50 Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red [166-0346]
