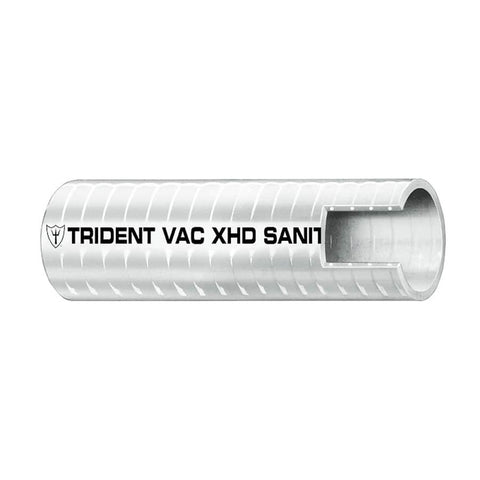

1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.

Features:

Sold by the foot
A hard PVC helix gives good flexibility and bend radius
No cuffs are required

Applications:

Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
Also for critical bilge, drain scupper, live well, etc

Specifications:

Tube & Cover: Hard PVC helix
Color: White
Reinforcement: PVC Helix
Temperature Range: 10°F-120°F (-12°C-48°C)
Inner Diameter: (inch) 1" / (mm) 25.4
Outer Diameter: (inch) 1.262" / (mm) 32.1
Working Pressure: (Psi Vac In./Hg) 28
Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52
Bend Radius: (inch) 3" / (mm) 76.2

*Don't use with alcohol, anti-freeze, petrochemicals, or solvents

*Burst Pressure is 4 x Working Pressure

Specifications:

ID Diameter (inches): 1"
Length (Feet): Sold By The Foot
Box Dimensions: 1"H x 1"W x 6"L WT: 0.32 lbs

Quick Guide (pdf)

Trident Marine 1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot [148-1006-FT]
