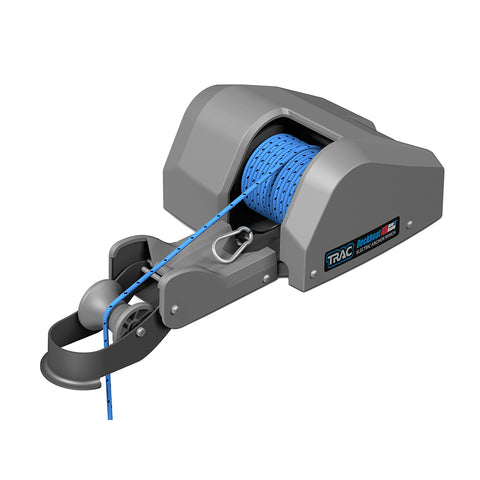

Deckboat 40-G3 Electric Anchor Winch with AutoDeploy

The TRAC Outdoors Deckboat 40-G3 Electric Anchor Winch with AutoDeploy allows you to automatically raise and lower your anchor with easy-to-use buttons. AutoDeploy works by simply pressing and releasing the down button. When the anchor reaches the bottom, the winch will shut-off, holding the boat in place.

It has a maximum anchor capacity of 40 lb. and provides simple, smooth operation with excellent holding power. This winch features a high-efficiency, 12 V, all-steel gear motor that uses less battery power than other brands.

*Anchor not included

Technical Specifications:

Boat Size - Up to 26'
Anchor Capacity - 40 lb
Anchor Deployment - Power Down or AutoDeploy Down
Rope Speed Down - 70 FPM
Rope Speed Up - 65 FPM
Power - 12 V
Dimensions (L x W x H) - 19.5" x 9.75" x 5.75"

In the Box:

Winch w/integrated anchor roller
100' of 3/16" pre-wound double braid anchor rope
Sealed membrane UP/DOWN/AutoDeploy switch
Marine-grade battery wire - 17'
Assembly hardware and
Instruction manual

*Sold as an Individual

Warning WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Vertical/Horizontal: Horizontal
Chain - Diameter (Inches): N/A
Rope Diameter (Inches): 3/16"
Freefall: No
Box Dimensions: 7"H x 10"W x 16"L WT: 13.95 lbs
UPC: 666996102199

Owner's Manual (pdf)
