Nightwave Ultra Low-Light Marine Camera - Grey

Nightwave is an ultra low-light marine navigational camera built around SIONYX’s patented Black Silicon CMOS sensor. It allows mariners of all levels to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras, navigating safely, avoiding collisions, and maximizing time on the water. IP67-rated, it’s built to operate in the toughest marine environments.

Nightwave’s flexible mounting and video streaming setups allow both seamless integrations with major brand MFDs and the option to view live video on your mobile device – so you can navigate confidently in the dark from any vessel with clear color digital night vision.

Features:

Gray camera color
MFD compatible
Detect a man-sized object from 150 m (492 ft.) away
<1 mlx moonless starlight sensitivity allows you to see well beyond human eyesight
A stable 44º field of view increases situational awareness to spot unexpected obstacles, debris, markers, vessels, and more
IP67 rating protects against water, sand, salt, and dust. Dry nitrogen is purged to prevent lens fogging. Safely use Nightwave in inclement weather conditions
Flexible installation options allow seamless integration with major brand MFDs and WiFi video streaming to the new SIONYX mobile app

Included:

SIONYX Nightwave Ultra Low-Light Marine Camera (CRV-500C)
Analog video cable [5M]
SMA to BNC adapter
BNC to RCA adapter
Power fuse & fuse holder
Digital video cable USB [3M]
Base gasket
Mounting hardware
User manual
Install template

Camera Specifications:

Sensor Type: XQE1350 BSI CMOS
Resolution: 1280 X 1024
Frame Rate: 30 HZ
Horizontal Field of View: 44°
Visible Spectrum: 400-1200NM
Focus Range: 10M TO INFINITY
Lens: 16MM F/1.4

System Specifications:

Video Out: Analog video [NTSC]
Analog Video Connection: SMA / BNC/ RCA
Wireless Communications: WiFi + Bluetooth
Power In: 12Vdc / 5Vdc[USB]
Power Connection: Tinned copper wire / USB [with provided optional cable]

Environmental Specifications:

Ingress Protection: IP67 water and dust resistant
Shock & Vibration: IEC60945 [V15G | H:9G] | IK08
Operating Temperature: -20°C To +50°C
Storage Temperature: -20°C To +80°C

Physical Specifications:

Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware
Bulkhead Mount: 4 X M6 Blind Holes
Top-Down Mounting Holes
Temporarily mount via the single 1/4 in. 20 center mount
Once mounted, the camera features manual vertical tilt adjustment

Power and Output Options:

The preferred video output must be selected using the SIONYX App
WiFi communication and command and control options are available via the SIONYX App using either 12V DC or USB

Quick Guide (pdf)
Owner's Manual (pdf)

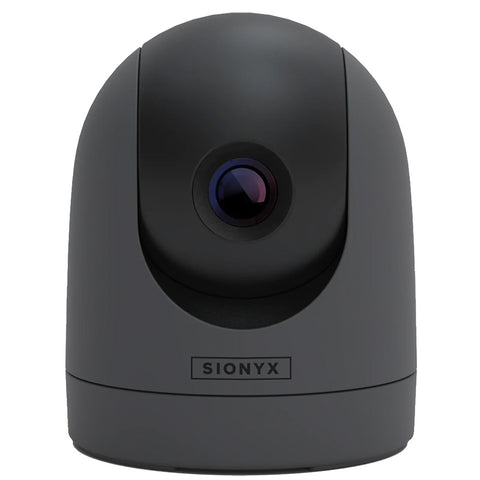

SIONYX Nightwave Ultra Low-Light Marine Camera - Grey [C014700]
