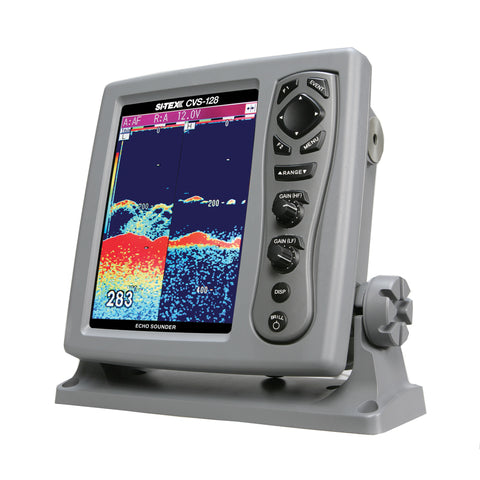

CVS-128 Digital Echo Sounder

Features a digital signal processor for a clearer high-definition image that enhances fish targets in shallow and deep depths. Brilliant 8.4" color LCD daylight viewable display with 8, 16 or 64 color levels, Dual-frequency 50/200 kHz operation, 1000 Watts with 8 ranges from 0-3600' and exclusive Sona-Tone identifies what's under boat with different sounds for fish or schools of fish.

Features:

Stores up to 10 screen images in built-in memory for recall later.
High-speed pulse rate transmission of 5000 times per minute for enhanced shallow water detection.
Easy operation
RGB output
Auto fishing/cruising modes
Audio/visual alarms
Fishing hot spot function leads you back to your favorite fishing hot spots with input from GPS
Bottom discrimination mode
Real-time multi-color A-scope
Built-in simulator
Lat/Lon position with input from optional sensor
Displays boat speed / surface water temp with Optional transducer
IPX5 waterproof rating
Over-head mounting and built-in flush mounting

What's in the box:

Display Unit with hard cover
Mounting Bracket
DC Power Cable
Fuses
Operation Manual

Specifications:

Screen Size: 8.4"
Transducer Type: Not Included
Transducer Included: No
Box Dimensions: 8"H x 11"W x 14"L WT: 10.85 lbs
UPC: 010407320748

Owner's Manual (pdf)

SI-TEX CVS 128 8.4" Digital Color Fishfinder [CVS-128]
