Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

Full Band (698 - 2700 MHz) Broadband
2G/3G/4G and WLAN systems
Wi-Fi 802.11n compatible
Designed for marine use
Omni-directional antenna 3-4 dB Gain.
Easy to install
Includes FME Cables

Specifications:

Frequency: 698-960/1700-2700 MHz
Input Impedence: 50 ohm
Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
VSWR: ≤ 1.8
Power Rating (W): 10
Polarization Type: Vertical
Radiation: Omni-Directional
Maximum Power (W): 100
Connector Type: N-female
Dimension: 9.25" H x 2.625" D
Color: White
Operating Temperature (F): -22 to +176
Mounting: 1" x 14 Thread Mount
Ground Plane: Internal
Material: Fiberglass

Specifications:

Length (Inches): 9.25"
Construction: Fiberglass
Color: White
Box Dimensions: 5"H x 5"W x 11"L WT: 1.8 lbs
UPC: 719441900960

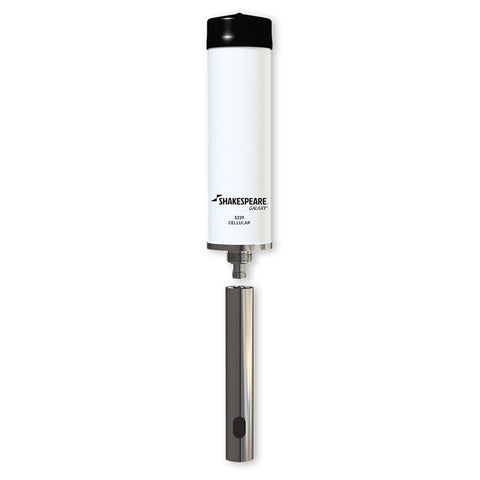

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna [5239]
