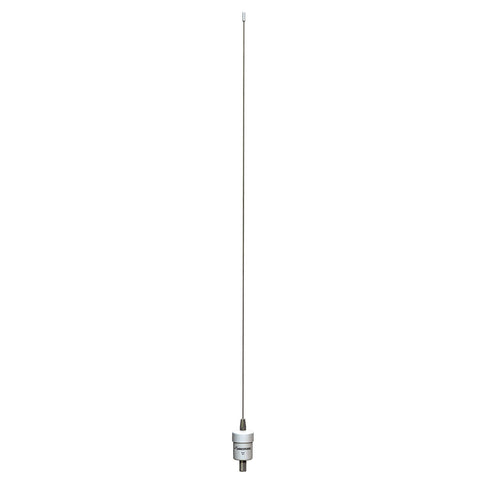

Shakespeare Squatty Body®
Style 5215-AIS
3' (0.9m) VHF Marine Band 3dB

End-fed 1/2-wave stainless steel whip

Sailboat owners will love this version of their longtime favorite, our Style 5215. Its the same light weight, low-profile, stainless steel antenna, specially designed for masthead mounting and built with extra bandwidth for all popular AIS transceivers.

Sealed, tin-plated copper wire coil
Designed specifically for AIS transceivers
SO-239 connector
Stainless steel L-shaped bracket supplied for mounting
One section
For AIS applications

Best applications include: Sailboats

Shakespeare 5215-AIS Squatty Body® Specifications

Band: VHF Marine Band
Antenna Gain: 3dB
Max. Input Power: 50 watts
SWR: nominally 1.5:1 at 162 MHz
Bandwidth: 7 MHz within 2.0:1 VSWR
Ferrule: L-bracket and retaining nut, SO-239 connector
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground - The antenna will read open on continuity test.
Shakespeare Limited Warranty: 2 years

Specifications:

Antenna Band: AIS
Length (Inches): 36"
Box Dimensions: 2"H x 2"W x 40"L WT: 2 lbs
UPC: 719441100810

Quick Guide (pdf)

Shakespeare AIS 5215-AIS 36" Squatty Body Antenna f/Sailboats [5215-AIS]
