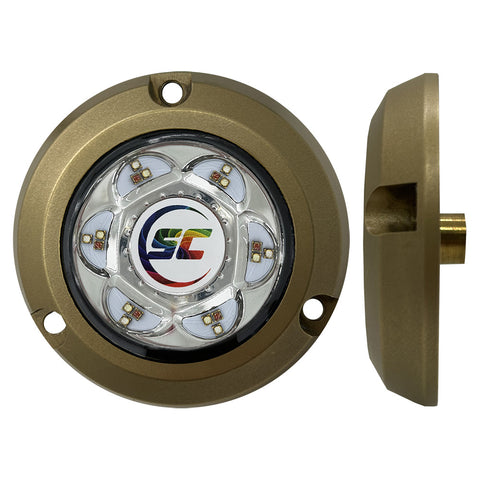

SC2 Series Bronze Surface Mount Underwater Light - Full-Color

The SC2 underwater light provides a vessel with 24 watts of intense LED lighting. The SC2s are designed with a sub-compact 2.99" bronze housing for under-the-waterline surface mounting. Single-color and color-changing versions are available with variable brightness and a wide array of control options. This underwater light has a full-color (RGBW) color output.

Features:

A proprietary clear gel-filled design, injected through the entire unit, eliminates condensation and/or water intrusion under stress
Tough, scratch-resistant, tempered glass lens with bronze housing—impervious to acetone, solvents, and demanding marine environments
Transient surge and reverse polarity protection dramatically prolong unit life
Thermal throttling technology enables safe operation even in water
From simple on-off to full-feature lighting effects, the unit is enabled for a host of control interfaces

Specifications:

Color: Full color (RGBW)
Up to 3,000 lumens
120-degree beam angle
24-watt power draw
2 amps of operating current draw @ 12V
10-30 volts input
2.99” (75.9mm) outside diameter
IP68 fully submersible waterproof design

Includes:

Lighting unit
3’ (1m) submersible grade cable
3 mounting screws
3-year standard warranty

2 Control Options:

Power Toggle Control - Quickly toggle the power source to advance to the next color or brightness level
Add Shadow-NET™ Control - Dramatic, full-feature control through your Multifunction Display (MFD) by adding the Light Commander Shadow-NET™ control module (SCM-LC-PLUS) and app

Specifications:

Color: Full Color RGBW
Material: Bronze
Mounting Style: Surface
Voltage - Input Range (Volts): 10-30v
Watts: 24
Box Dimensions: 3"H x 5"W x 8"L WT: 0.9 lbs
UPC: 8500243426138

Quick Guide (pdf)

Shadow-Caster SC2 Series Bronze Surface Mount Underwater Light - Full-Color [SC2-CC-BZSM]
