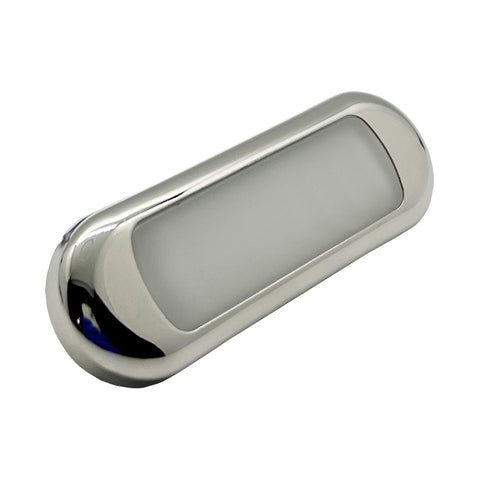

RGBW Courtesy Light - SS

The Shadow-Caster® CLX Courtesy Light is an innovative solution for lighting accents and functional areas of a vessel.

These front-facing lights have a true white channel for plenty of light efficiency, are waterproof, and are designed with a low profile to create a seamless look on a boat.

Beautifully light your boat’s steps, coves, shelves, compartments, and work areas with our CLX Courtesy Lights.

Features:

Wide angle illumination
Unique design for even illumination and low glare
RGBW output
True white channel for functional use
Low profile and small footprint
Polished stainless steel bezel for aesthetics
3-Year Warranty

Specifications:

Up to 80 lumens of white light
The current draw is 50mA for each channel. (red, green, blue, and white)
12V DC, 300mA max current
1.5W max power dissipation
300mA max current (RGBW)
UV-stabilized polycarbonate housing
Stainless steel 316 polished bezel
IP67 water-resistant design
5 conductor RGBW wire
3” (76.2mm) x 1” (25.4mm) x 0.32” (8.13mm)

Specifications:

Housing: Stainless
LED Color: RGBW
Voltage - Input Range (Volts): 12v
Box Dimensions: 1"H x 4"W x 4"L WT: 0.1 lbs
UPC: 850056320061

Quick Guide (pdf)

Shadow-Caster RGBW Courtesy Light - SS [SCM-CLX-RGBW-SS]
