Downlight - White Housing - Warm White

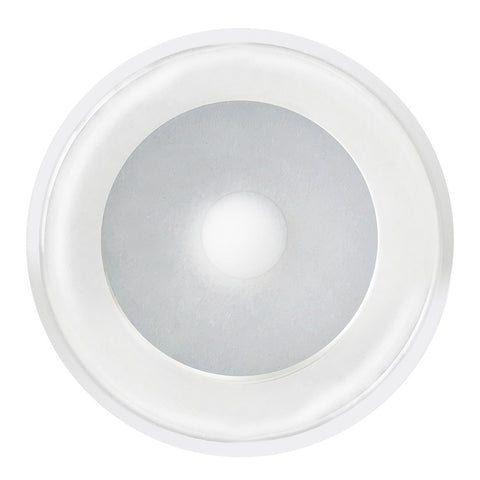

This Shadow-Caster™ large marine LED downlight is warm white and is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3" overall diameter, its wide-angle spread of light and all-glass reveal make this the ideal light for T-Tops, cabins, towers, and more.

Features:

LED color is warm white
120-degree viewing angle
High-efficiency switch mode power supply
Waterproof low-profile aluminum housing
All-Glass reveal provides a modern look
White finish
Durable glass lens
3-Year Warranty

Specifications:

300-lumen output (white versions)
120-degree beam angle
- 3-watt power draw
- 10-30 volts input
- 250mA at 12 volts, 125mA at 24 volts
- 6000 Kelvin cool white color temperature
- 3000 Kelvin warm white color temperature
- 3 in. (76mm) OD, 0.175 in. (4mm) mounting height
- 2 in. (51mm) mounting hole
- IP67 waterproof design
- 18 in. (45cm) lead wire

Includes:

Down light
Flush mounting bracket
(3) #4 X 0.5 in. (12.7mm) SS316PH screws

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Bulb Type: LED
Bulb Watts: 3
Housing: White
LED Color: Warm White
LED: Yes
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 3"H x 4"W x 4"L WT: 0.25 lbs
UPC: 850024342385

Quick Guide (pdf)

Shadow-Caster Downlight - White Housing - Warm White [SCM-DLXS-WW-WH]
