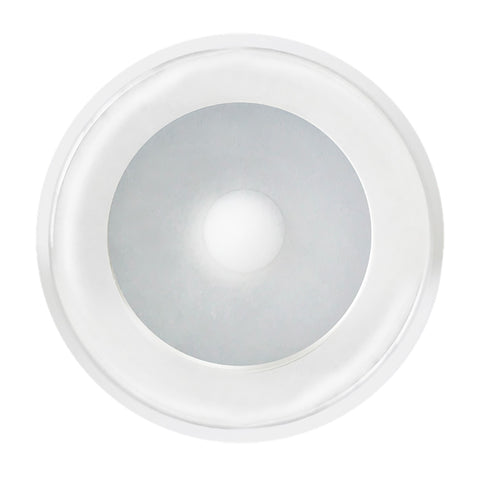

DLX Series Down Light - White Housing - White

The Shadow-Caster® Large Down Light (SCM-DLX) is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3” overall diameter, its wide-angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers, and more. The SCM-DLX series is available in 3 light output choices; single color white, 3 colors (white, blue, and red) as well as a full-color version. Choose from three beautiful color finishes – white, black and polished chrome. Easily control the brightness and color from a standard switch.

Features:

Soft start technology ramps the brightness up gently over 2 seconds
Power toggle feature to set brightness and change color
True white LED for best color performance
120-degree viewing angle
High-efficiency switch mode power supply
Waterproof low-profile aluminum housing
White, black, or polished chrome finish
All-Glass reveal provides a modern look

Specifications:

300-lumen output
120-degree beam angle
3-watt power draw
10-30 volts Input
250mA at 12 volts, 125mA at 24 volts
6200 Kelvin cool white color temperature
3” (76mm) OD, 0.175” (4mm) mounting height
2” mounting hole
IP67 waterproof design
Durable glass lens
Color change version includes Shadow-NET® interface for control

Includes:

Down light
Flush-mounting bracket and (3) #4 X 0.5” SS316PH screws
Quick start guide
Standard 2 year warranty

Shadow-Caster DLX Series Down Light - White Housing - White [SCM-DLX-GW-WH]
