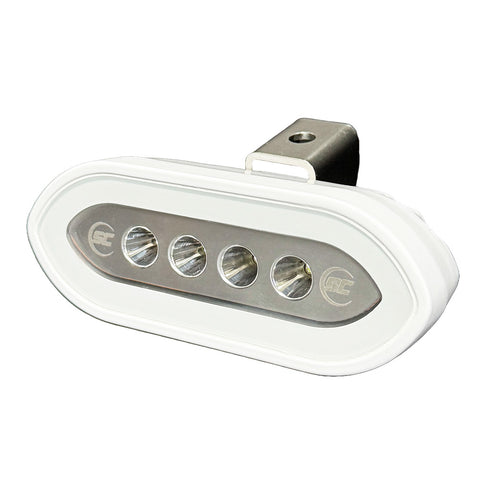

Bracket Mount Spreader Light - White Housing - White

The Shadow-Caster 4X Bracket Mount Spreader Light is perfect for illuminating decks and other large areas of your boat or yacht. The bracket mount version is great for retrofitting existing installations. The Shadow-Caster parabolic reflector design offers a 60-degree beam. It is available in a single color white. The brightness can be controlled with a standard switch or Shadow-Caster Light Commander controller and NMEA 2000 interface.

Features:

Soft start technology ramps the brightness up gently over 2 seconds
Power toggle feature to set brightness
Cool white color temperature LED for best performance
High-efficiency switch mode power supply
Waterproof aluminum housing
Unique reflector design to reduce glare

Specifications:

3000 lumens output
60-degree beam angle
20-watt power draw
10-30 volts input
Current draw: 1.5 amps
6200 Kelvin cool white color temperature
4.25” (108mm) overall length X 1.6” (41mm) width X 2.8” (71mm) height
IP67 waterproof design
Durable glass lens

Includes:

Spreader light
3’ (1m) submersible grade cable
SS 316 bracket
Standard 3-year warranty

Quick Guide (pdf)
Brochure (pdf)

Shadow-Caster Bracket Mount Spreader Light - White Housing - White [SCM-SLB4X-GW-WH]
