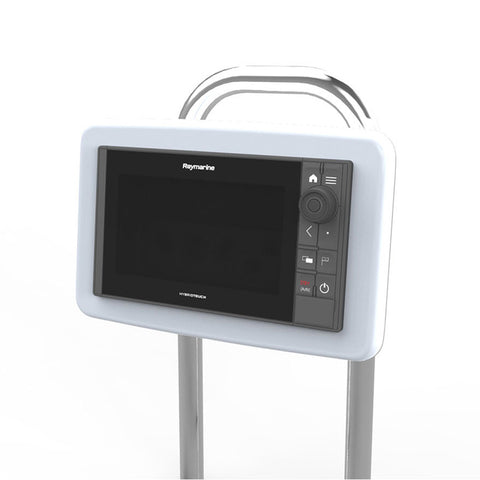

Scanpod Helm Pod Uncut for 9" Displays

With great design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations.

With options to fit radar displays, chartplotters and standard navigation instruments, the choice is yours!

For Displays & Standard Instruments:

Fits up to 9" displays
Can accommodate 3 or 4 standard instruments (e.g. ST60)
Usable face 13.2H x 8.14W

Features:

UNIVERSAL HELM FIXING

Fits pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter. Using a unique clamping system, the Deep Pod's can fit rail widths from 178mm (7”) upwards.*

SECURE & WATERTIGHT INSTALL

Saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry.

NO DRILL FIXING KIT

Customised U-bolts fit around rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

HASSLE FREE INSTALL & SERVICE

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

INCREASED PROTECTION

Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

SUPPLIED UNCUT

As standard you will receive your Scanpod uncut. For larger orders, a factory cutting service is available.

Specifications:

Usable Face: 13.2"W x 8.14"H
Mounting Style: Pedestal
Cut/Uncut: Uncut
Box Dimensions: 8"H x 10"W x 15"L WT: 5.5 lbs
UPC: 5060114797277

Scanstrut Scanpod Helm Pod Uncut f/9" Displays [SPH-9-W]
