Solar Charge Controller - 12V - 8A

The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.

Features:

Micro-controller based for automatic, intelligent operation
Designed for 12V nominal solar panels and 12V battery systems
3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
Automatically turns on lights when dark and turns off during the day
Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
Wide operating temperature range of -40°C to + 60°C

Specifications:

Input: 12V
Amps: 8 Amps
Weight: 0.28 (lbs) / 0.13 (kg)
Dimensions: 3.8 x 1.8 x 1.0 (in)
Dimensions: 9.65 x 4.57 x 2.54 (cm)
Safety: FCC, CE, IP65
Warranty: 5 Year Limited

Applications:

Off-grid mobile rural systems
Rural electrification
Power supply for remote equipment
Monitoring systems for the oil & gas industry
Traffic, security, environment, and other remote monitoring and signaling systems
Water pumping systems

Owner's Manual (pdf)
Brochure (pdf)

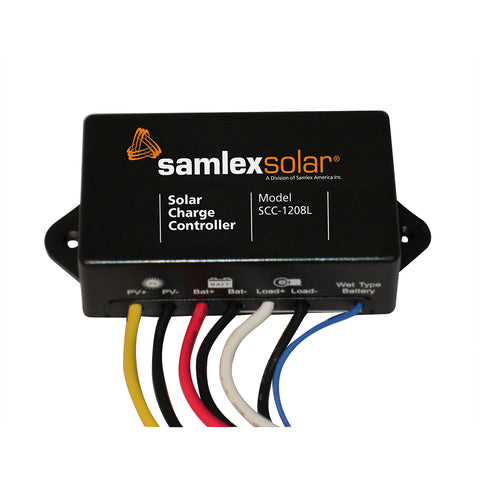

Samlex Solar Charge Controller - 12V - 8A [SCC-1208L]
