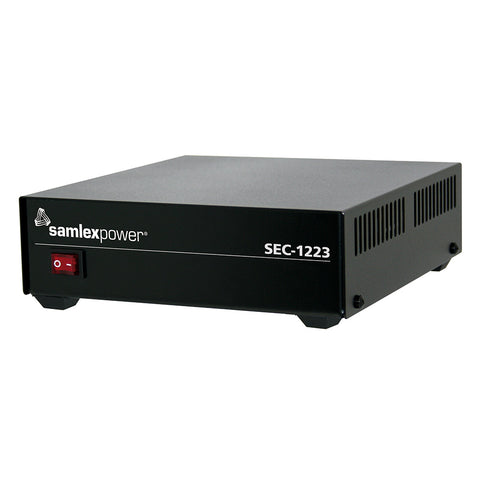

SEC-1223 Power Supply

This high-efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. These advanced switch-mode DC power supplies were designed specifically for land mobile radio (LMR) applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, and over-voltage protection. The AC-DC switching power supply conforms to FCC Part 15(B), class B digital device.

Features:

Advanced switch-mode technology
Reliable power with minimum weight and size
Circuit innovations minimize output voltage ripple and RFI
Input voltage can be set at 120VAC or 240VAC (internal jumper)
UL listed to both USA & Canadian safety standards

Specifications:

Input: 100-130 VAC
Output: 13.8 VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 3.5 (lbs)/1.6 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in)/18.5 x 20.8 x 6.1 (cm)
Safety: UL, FCC

Applications:

Two way radio base stations
Communications systems
Security systems
Test equipment
Plotters
GPS receivers
Automotive & Marine displays
DC computers
12 Volt lighting systems
OEM applications

Quick Guide (pdf)
Brochure (pdf)

Samlex SEC-1223 Power Supply [SEC-1223]
