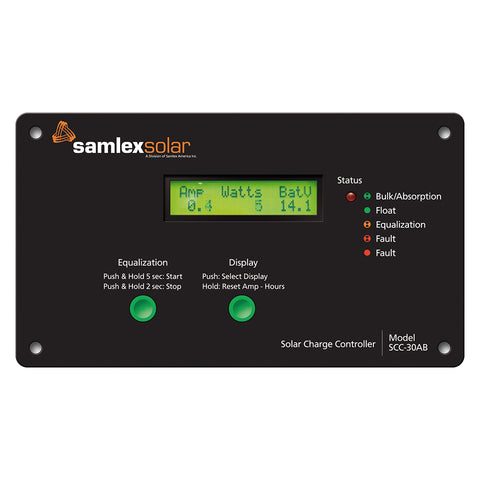

Flush Mount Solar Charge Controller w/LCD Display - 30A

The Samlex 30 Amp Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional DC-BTS-A-C Battery Temperature Sensor.

Features:

Pulse Width Modulated (PWM) charging – most efficient and effective way to charge batteries
4-stage battery charging: Bulk, Absorption, Float and manual / automatic Equalization
8 selectable battery charging profiles for easy setup
Temperature compensated charging with optional Temperature Sensor
Digital LCD Monitor for informative display of operational parameters and fault messages

Specifications:

Input: 12V / 24V
Amps: 30 Amp
Weight: 0.8 (lbs)
Weight: 0.36 (kg)
Dimensions: 7.5 x 4.25 x 1.5 (in)
Dimensions: 19.1 x 10.8 x 3.8 (cm)
Warranty: 5 Year Limited

Applications:

Recreation vehicles
Service vehicles
Boats
Field work
Telecommunications
Mobile offices
Construction sites

Owner's Manual (pdf)
Brochure (pdf)

Samlex Flush Mount Solar Charge Controller w/LCD Display - 30A [SCC-30AB]
