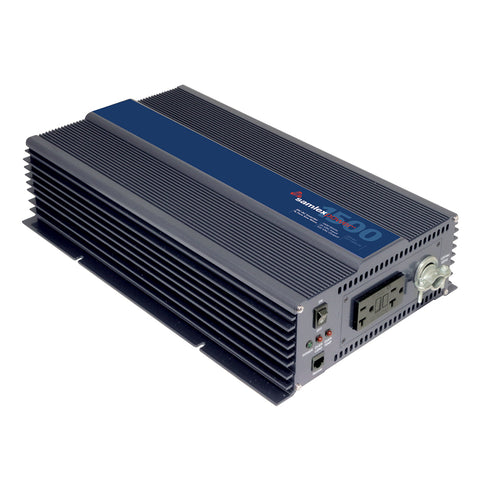

1500W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs or can be hard-wired. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

High efficiency
Can be hard wired
Temperature controlled cooling fan – reduces energy consumption
Low interference
Wide operating DC input range: 21.4 - 33.0 VDC
Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
Low idle power draw
Dual GFCI protected AC outlets
Optional remote control (sold separately): Model RC-200
Safety certified to UL standards, FCC compliant

Specifications:

Input: 24 VDC
Output: 120 VAC
Watts: 1500
Surge: 3000 Watts
Remote Control: RC-200 sold separately
Weight: 15.6 (lbs)
Weight: 7.1 (kg)
Dimensions: 10.35 x 18.43 x 4.16 (in)
Dimensions: 263 x 468.2 x 105.6 (mm)
Safety: ETL to UL Standards
Warranty: 2 Year Limited

Applications:

Service vehicles
Mobile Offices
Boats
Recreation Vehicles, Camping
Telecommunication
Field work / Construction sites
Solar power systems
Emergency backup power
Home electronics: TV, VCR, video games
Computers, printers

Specifications:

Inverter Cont. Output Wattage: 1500w
Outlet Qty: 2 Duplex GFCI
Inverter Input Voltage: 24v
Waveform: Pure Sine Wave
Box Dimensions: 6"H x 12"W x 21"L WT: 17.2 lbs
UPC: 622988072208

Owner's Manual (pdf)
Brochure (pdf)

Samlex 1500W Pure Sine Wave Inverter - 24V [PST-1500-24]
