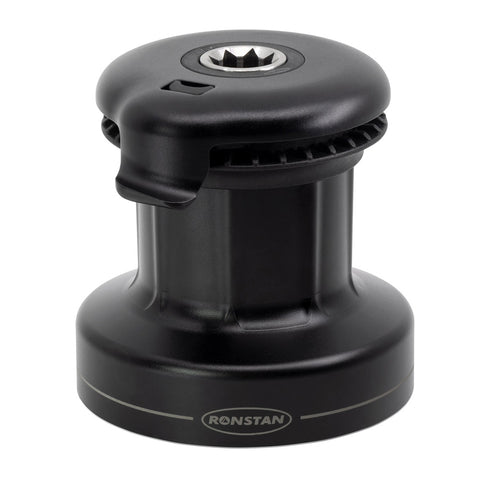

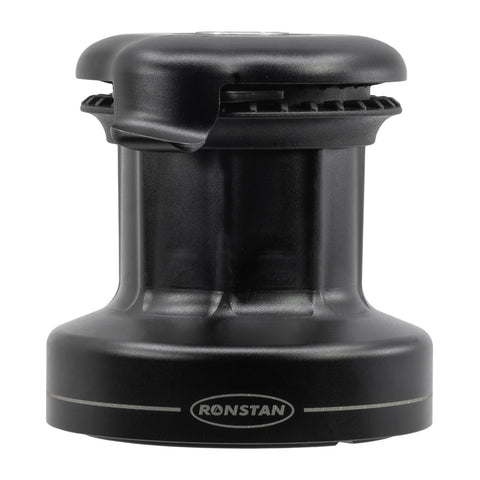

20ST Orbit Winch 1 Speed

Ronstan’s Orbit Winches™ are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches™ weigh significantly less and offer lower line entry heights than any other winch in their class.

Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs™ that many sailors will recognize from Andersen Stainless Steel Winches®, well-known for their impressive line grip, smooth control, and minimal rope wear.

Power Ribs™

The exceptional grip provided by the Power Ribs™ offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.

No Tools Required

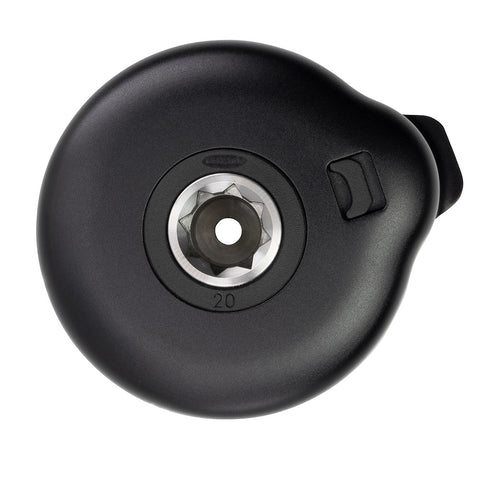

Full disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem.

When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.

Features:

Lightweight machined aluminum drum
Distinctive Power Ribs™ ensures a controlled grip at all times, whether tensioning or easing

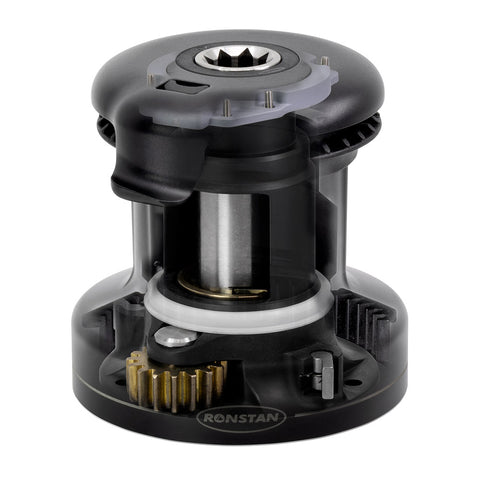

Proven Andersen winch gearing configuration
No tools are required for configuration and servicing
Sprung self-tailing jaws to accept 6-10mm line

Materials:

Hard anodized aluminum drum and center stem, aluminum self-tailing arm
Grade 316 stainless steel shaft and pawls
Grade 2205 stainless steel axle pins
Aluminum bronze gears
Glass-filled nylon self tailer
Self-lubricating acetal bearings

Specifications:

Weight (kilogram): 1.7kg
Power Ratio: 18.3:1
Base Diameter (millimeters): 120mm
Maximum Pulling Load (kilogram): 550kg
Drum Diameter (millimeters): 75mm
Base Diameter (millimeters): 120mm
Height (millimeters): 124mm
Line Entry L (millimeters): 42mm
Line Size (millimeters): 6-10mm
Gear Ratio 1st Speed: 2.7:1
Power Ratio 1st Speed: 18.3:1

Quick Guide (pdf)
Owner's Manual (pdf)

Ronstan 20ST Orbit Winch 1 Speed [RA6201]
