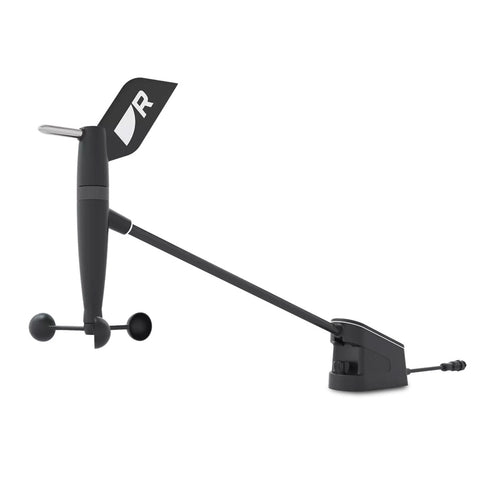

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M Cable

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.

Install & Go!

Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up.

Finely Tuned

Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.

Sail Smarter

Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

Specifications:

Length

Wind transducer (including cable): 657.762 mm (25.90 in)
Wind transducer (excluding cable): 540.712 mm (21.29 in)
Wired gateway: 155.61 mm (6.13 in)

Width

Wind transducer: 46.96 mm (1.85 in)
Wired gateway: 47.38 mm (1.88 in)

Height

Wind transducer: 305.86 mm (12.04 in)
Wired gateway: 30.61 mm (1.21 in)

Power

Nominal supply voltage: 12 V dc (via SeaTalk NG)
Operating voltage range: 9 V to 16 V dc
Power Consumption: < 100 mW
Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1

Environmental

Operating temperature range: -25°C to +55°C (-13°F to +131°F)
Storage temperature range: -30°C to +70°C (-22°F to +158°F)
Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C
Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3
Wind: 115 mph (185 kph)
Vibration: EN 60945:2002 (exposed)

What's In The Box?

No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
Mast cable, 30 m (98.43 ft) reel
Documentation
Wind transducer
Smart wind-wired gateway
SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)

Raymarine RSW Wired - Smart Performance Wind Transducer - Short Arm w/30M Cable [E70670]
