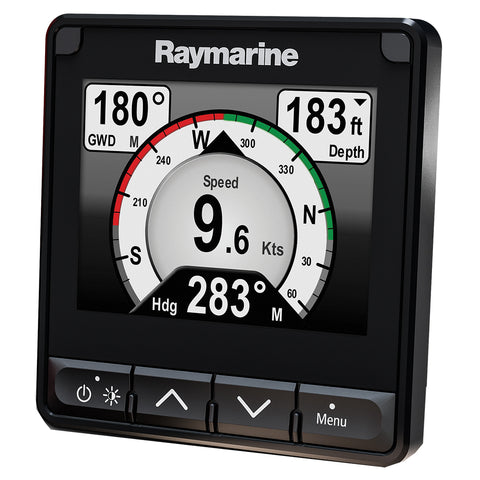

i70s Multifunction Instrument Display

Maximum Visibility and Maximum Versatility
The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1_ display, the i70s is easy-to-customize with digital, analogue and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.

Features:

4.1" super bright oversized LCD for maximum visibility
All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle
Glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
Simple user interface with sculpted rubber keypad for precise operation in all conditions
Customizable data displays of depth, speed, wind and more
SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
NMEA2000 connectivity* for engine, environment fuel and navigation data
Convenient AIS repeater mode allows you to visually track nearby AIS targets
Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors
Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer
Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

*NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is required for connecting the i70s to NMEA2000 backbone.

Intuitive LightHouse User Interface
The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.

Networking
Raymarine i70s allows for connectivity to the following on board networks:

First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable
Current generation SeaTalkng networks
NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.

AIS Repeater
Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Transducer Connectivity
Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analogue depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.

Customization
The Raymarine i70s instrument is easily customised to suit your personal boating requirements. From traditional analogue dials to engine information and tank levels, i70s has the capabilities to show it all.

Specifications:

Screen Size: 4.1"
Shape: Square
Instrument Function: Multifunction
Box Dimensions: 4"H x 7"W x 9"L WT: 1.6 lbs
UPC: 723193812297

Owner's Manual (pdf)

Raymarine i70s Multifunction Instrument Display [E70327]
