EV-100 Tiller Evolution Autopilot

Features:

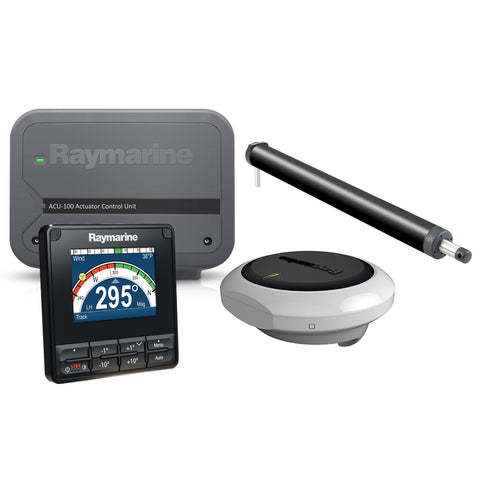

A complete autopilot-in-a-box
Evolution Ai for superior performance
No calibration required
Quick and easy installation
Powerful tiller drive is compact and unobtrusive
Used by the world's top single-handed sailors
For tiller steered boats up to 13,200 lbs (6,000 kg)
For 12V DC power systems
Includes p70s Autopilot Controller

Includes:

EV-1 Sensor Core
p70s Autopilot Control Head
ACU-100 Actuator Control Unit
Tiller Drive
Tiller Pin (sold in packages of 5)
Mounting Socket (sold in packages of 5)
Evolution Cabling Kit
EV Unit O-Ring Pack (set of 2)
Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

Precision monitoring of heading, pitch, roll, and yaw allowing the =autopilot to evolve instantly as sea conditions and vessel dynamics change
Flexible installation options
Mount above or below deck
Simple SeaTalk^ng connectivity to the control head and ACU
Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70 Autopilot Control Head

The p70 is a push-button operation controller designed primarily for sailboats.

Features:

LightHouse user interface is simple and quick to use
Wide 160° viewing angles
Start up wizard helps you configure the pilot quickly and easily
Anti-reflective coating for improved visibility in bright sunlight
Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
Simple system and group dimming/illumination
Support for multiple data sources
SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

1 x SeaTalk^ng Power Cable (0.4m)
1 x SeaTalk^ng Backbone Cable (5m)
1 x SeaTalk^ng Spur Cable (0.4m)
1 x SeaTalk^ng 5-way Connector Block
2 x SeaTalk^ng T-piece Connector
2 x SeaTalk^ng Terminator

Specifications:

Steering Type: Tiller
Box Dimensions: 12"H x 13"W x 31"L WT: 12.05 lbs
UPC: 723193774274

Quick Guide (pdf)
Brochure (pdf)

Raymarine EV-100 Tiller Evolution Autopilot [T70153]
