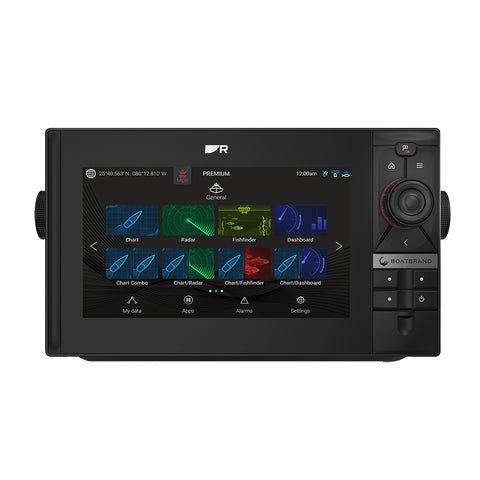

Axiom 2 Pro 9 S 9" Chartplotter/Fishfinder - No Transducer or Chart

Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro S chartplotters feature built-in single channel High CHIRP sonar- the ideal sonar solution for reliable depth sounding and underwater exploration. Available in 9, 12, or 16-inch display sizes, Axiom Pro 2 is the perfect cruising companion.

Features:

Get underway faster with a fast 6-core processor
HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
Integrated High CHIRP sonar with transom, in-hull, and low-profile through-hull CPT-S series transducer options
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
Create your own Axiom 2 Pro system with multiple networked Axiom displays
Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems

Specifications:

Connections:

Digital Video & Audio Out Connection: HDMI Out Micro connector type D’
External GPS Antenna Connection: TNC connector
Accessory connection: USB Micro B (rear–charging, external storage device or RCR-SD/USB Accessory (A80440)
Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
External storage: MicroSD card slot x2 (front)
Chart options: Navionics+ or Navionics Platinum or C-map 4D Software, Lighthouse North America
NMEA 2000 connection: DeviceNet connector
Analog video connections: BNC Analog video input (on power cable)
Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
Audio connections: Left and Right RCA connectors via Power/Video/Audio cable

GPS:

GNSS compatibility: GPS, Galileo, GLONASS, Beidou

Sonar:

Channels: CHIRP conical sonar (Uses CPT-S Transducers with adapter cable A80490)
Depth range: 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions

Lighting:

Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2

Storage:

Internal storage: 64 GB Solid State

Specifications:

Cartography Brand: Navionics/C-Map
Screen Size: 9"
Touchscreen: Yes
Transducer Included: No
Box Dimensions: 8"H x 9"W x 14"L WT: 11.35 lbs
UPC: 723193843512

Raymarine Axiom 2 Pro 9 S 9" Chartplotter/Fishfinder - No Transducer or Chart [E70653]
