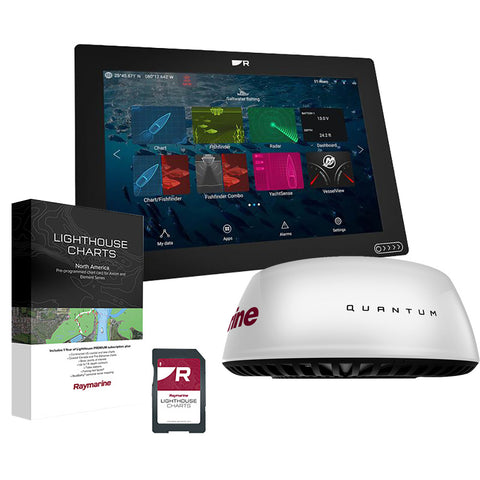

Axiom+ 12 RV Chartplotter/Fishfinder with Raymarine Quantum™ Q24C Radar Bundle

Axiom+ 12 RV Chartplotter/Fishfinder

The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving users the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.

The higher-resolution IPS displays deliver 25 percent more brightness, and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Performance Tuned:

Designed for speed, responsiveness, and future expansion.
Powerful quad-core processor, plus increased onboard storage for personal data and apps
Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP
ClearCruise™ Augmented Reality-capable for smarter navigation decisions
Smart and intuitive LightHouse 3 OS makes navigating easy

Maximum Visibility:

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color
IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
Improved viewing with LightHouse 3 color themes, including light, dark, and night mode
The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, installation instructions, and the Lighthouse North America Chart.

Features:

IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for any style of navigating
RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world. Optional transducer required.
Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High-Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish-targeting
Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short-range
Marine Audio Control - Turn up the volume and control NMEA2000-compatible marine audio systems like Rockford Fosgate
Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
Built-in Wi-Fi lets users stream and control Axiom from a smartphone or tablet. Users can also sync Axiom's waypoints, routes, and charts with Navionics mobile app

Quantum™ Q24C Radome with Wi-Fi & Ethernet - 10M Power & 10M Data Cable Included

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a standard for compact solid-state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Superior Radar Imaging

FLIR's exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.

CHIRP Pulse Compression

Excellent short-range detection and enhanced target detail with an 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.

Small Target Detection

Quantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Simplified Installation

Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II-powered MFD. Quantum's small-diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminates the need to run radar cables.

Energy Efficient & Lightweight Design

Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low-power solid-state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). They extended vessel battery life when under sail.

Specifications:

Array Size (Inches): 18"
Cartography Brand: Navionics/C-Map
Range - Max (Miles): 24nm
Screen Size: 12"
Touchscreen: Yes
Transducer Included: No
Box Dimensions: 1"H x 4"W x 5"L WT: 33.9 lbs

Owner's Manual (pdf)
Brochure (pdf)

Raymarine Axiom+ 12 RV Chartplotter/Fishfinder w/Raymarine Quantum Q24C Radar Bundle [T70590]
