12v Electric Trailer Winch

The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.

Remote power-in/freewheel-out operation
60 amp standard wiring harness
Pulley block for double line applications
One year limited warranty

Model 912

suggested max boat length
Max. boat weight of 11,500 lbs
4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)

Specifications

Max. Boat Weight: 11500

Line Speed: 8 FPM

Vertical Lift Capacity: 4000 lbs

Remote Control: No

Light: No

Double Line Capacity: 7500 lbs

Gear Ratio: 450:1

Power Source: 12V

Circuit Breaker: 60 amp

Unit Weight: 35 lbs

Depth: 10"

Width; 10"

Height: 8"

Cable Length and Diameter: 40' x 7/32"

Specifications:

Pull Strength (lbs): 4000 lbs
Manual/Electric: Electric
Gear Ratio: 450:1
Box Dimensions: 9"H x 11"W x 15"L WT: 34.5 lbs
UPC: 810123840090

Quick Guide (pdf)
Owner's Manual (pdf)

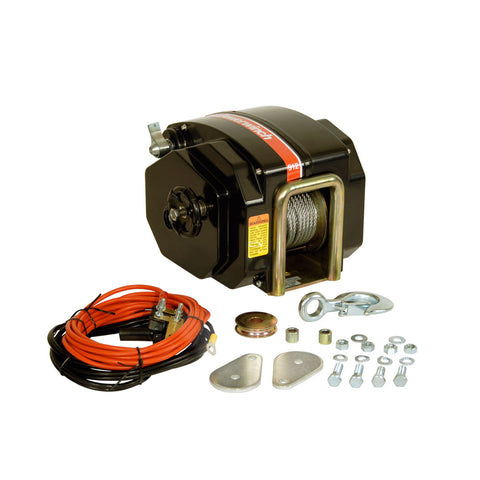

Powerwinch 912 Trailer Winch [P77912]
