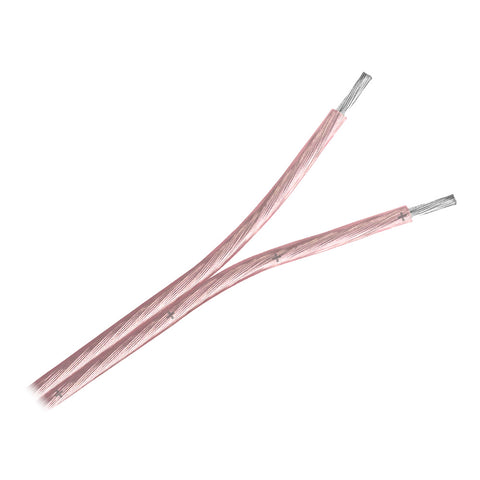

Clear 16/2 AWG Two Conductor Speaker Wire - 250'

Speaker wire is often used with home theaters, digital audio as well as stereo speakers. The speaker wire is not rated for in-wall usage. So, how is it manufactured? Speaker wire is made from finely stranded tinned copper conductors that carry translucent PVC insulation. To make identifying the polarity easy, we added a positive symbol (+) to one of the conductor's insulation. This insulation is designed to be flexible which makes installation easy.

How do you use speaker wire? Well, you start by choosing the proper gauge. This can be determined by determining how long the wire will need to be. It's always a good idea to always add a few extra feet to leave room for error. This also keeps the run from becoming too tight. Once you know the length of the wire, you will need to consider the power requirements for your application. After you know the length of your run and the power requirements, you can select the proper gauge wire for your job. If you would like help selecting the proper speaker wire, contact a Pacer expert today.

Features:

Highly flexible clear insulation

Compliances:

RoHS Compliant Directive 2002/95/EC

Characteristics:

Conductor: Fully annealed finely stranded tinned copper per ASTM B-174
Insulation: Clear PVC
Temperature Range: -20 °C to 105 °C
Voltage Rating: 90V

Applications:

Digital Audio, Stereo Speakers, and Home Theaters

Specifications:

AWG: 16/2
Length: 250 ft.
Conductor Stranding: 26/0.0100
Nom. O.D.: 0.112 x 0.210
Approx LB/M: 25

*Not Rated for In-Wall Use

Specifications:

Color: Clear
Gauge: 16/2 AWG
Length (Feet): 250'
Box Dimensions: 5"H x 7"W x 7"L WT: 6.1 lbs

Pacer Clear 16/2 AWG Two Conductor Speaker Wire - 250' [W16-2ACLR-250]
