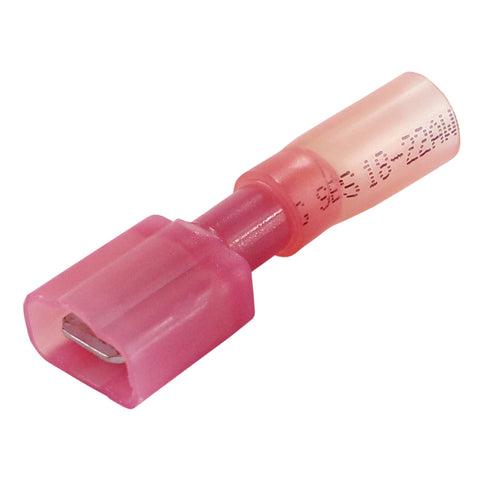

22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 100 Pack

Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacer's heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this? This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.

This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isn't an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

Protects terminations from water, condensation, salt spray, and corrosion
Added vibration protection in rugged environments
Provides strain relief

Characteristics:

Shrink Ratio: Approx. 3:1 at 135 °C
Operating Temp: -55 °C - 125 °C
Vol. Resistivity: 1015 Ohm-cm3
Dielectric Strength: 900-V/mil
Voltage Rating: 600-V

Specifications:

AWG: 22-18
Disc./Bullet Size: 0.250 in.
Insulation Color: Red
Package Size: 100

Compliances:

UL
CSA
RoHS

Specifications:

Color: Red
Gauge: 22-18 AWG
Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs
UPC: 840248207669

Brochure (pdf)

Pacer 22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 100 Pack [TDE18-250FIM-100]
