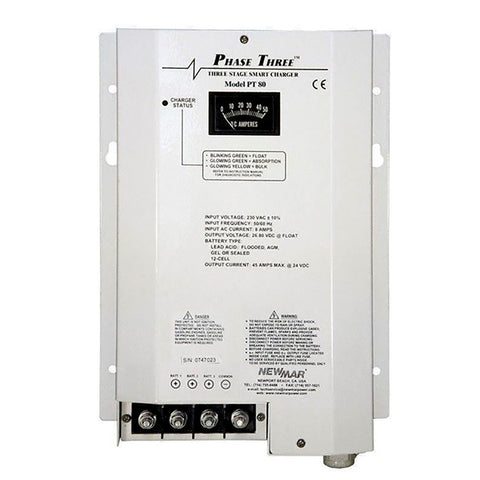

PT-80 Battery Charger

Newmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

12-volt model
“Smart” circuitry provides three-stage charging – bulk, absorption, and float
Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7)
Current limitations prevent damage from overloading
Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry
Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
ABS-type approval for battery charging and power supplies

Specifications:

Input VAC (50-60 Hz.): 90-264
Input Amps @ Full Load: @ 115 VAC: 12, @ 230 VAC: 7
Power Factor: .95@230V or .98@115V
Max Output Amps: 80
Output Banks: 3
Battery Capacity (Amp-Hours): 160-800
Operating Temp. Rating Reference: T-7
Case Size Reference: A-5
Case Size (H x W x D): 16.8C x 9.6 x 6.1C inches (42.7C x 24.4 x 15.5C centimeters) *Note with Dripshield installed C add 1” (2.54 cm) to height and .5” (1.27 cm) to depth
Weight Lbs./Kg: 15.2/7
Optional Temp. Sensor Model: TCS-12/24
Remote Panel Model: RP
Equalize Option: Yes
Output Indicator Reference: M-3
Compliance Reference: CE

Temperature Rating References:

Temperature: -10 degrees C to +60 degrees C
Derate Linearly From 100% @ 50 degrees C to 80% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

CG: USCG CFR 183.410 (Ignition protected)
CE: Carries the CE mark
ABS: PT Series meet SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13

Options:

Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)
Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional)
