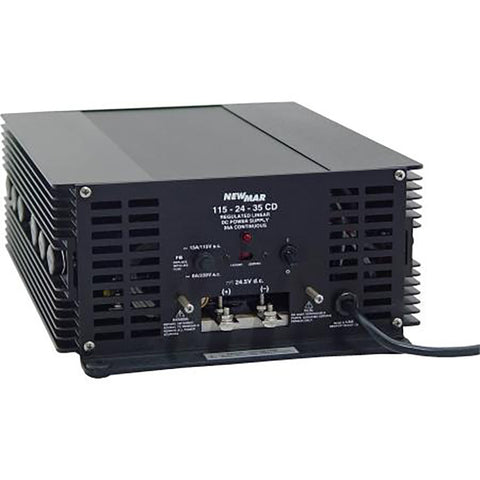

115-24-35CD Power Supply

This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.

Features:

Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
Thermally activated cooling fan on “CD” units

Specifications:

Nominal Input/VAC: 115/230
Maximum Input Current @115: 5.5
Maximum Input Current @230: 2.5
Output Amperage (Intermittent): 10
Output Amperage (Continuous): 4
Weight: 20 lbs. / 9.1 kg

Case Size:

H x W x D (inch): 5.7” x 4.8” x 16.3”

Input Range

105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC

Operating Temperature

C.D. Units - 0-65 degrees C, Derate linearly from 100% @ 50 degrees C to 50% @ 65 degrees C thermal Shutdown @ 85 degrees C case temperature

Duty Cycle:

Intermittent: 20 minutes max on time, 20% duty
Continuous: 24 hours/day 100% Duty

Options:

Modify for use as a battery charger
The output voltage is adjusted (see Output Voltage for range)
Transfer relay for back-up battery in event of power failure (ERC option)

Output Voltage:

24.5 VDC (Internally adjustable 21-27.5 VDC)
Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
1% Line and Load (@ 110-125 / 220-250 VAC input)

Mechanical:

Powder-coated aluminum heat sink case
Front panel terminal block
Heavy-duty mounting flange
Conformal-coated PC board

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Newmar 115-24-35CD Power Supply [115-24-35CD]
