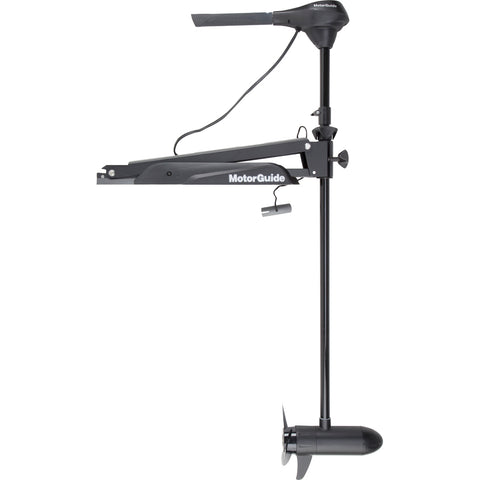

X3-55FW Hand Control Bow Mount - Digital - 55lbs-50"-12V

The X3 trolling motor is designed to deliver better performance and durability for anglers looking for the best value in the 40- to 70-pound thrust range. The X3 offers best-in-class steering performance. A dual cable pull-pull steering system eliminates slack, while the innovative patent-pending Variable Ratio Technology reduces torque steer feedback and improves responsiveness.

Durability means reliability - rigid aircraft-grade aluminum mount, stainless steel bushings and outer shaft, and composite shaft with a lifetime guarantee

Quiet on the water - fewer metal-to-metal interfaces, precision bearings, and new composite locking pins eliminate more noise and ensure noise-free operation over time
Precision steering - dual cable pull-pull system eliminates slack and provides the best-in-class steering performance

Digital Power Management Technology

MotorGuide Digital Power Management Technology delivers precise variable speed control and longer run time. This technology monitors your motor's amp-draw, heat dissipation, output, and other vital parameters, resulting in a cooler-running, more durable motor with an extended service life. Digital Power Management is a self-contained, sealed module in the lower unit that brings all vital motor components together in one protected location, while eliminating outdated analog circuit boards and their related components. This technology allows you to dial into the precise speed you are searching for, and in turn results in longer lasting battery life.

The X3 mounting bracket is built tough with aircraft-grade extruded aluminium to minimize flex and provide precision control under high-thrust.

Improved rigidity and durability
Easier to stow and deploy
Wider base for added stability
Stainless steel bushings in key wear points
Easy motor height adjustment and motor removal

Rugged Composite Shaft

The larger diameter shafts are rugged and corrosion resistant, paired with a durable stainless steel outer shaft. Special composite construction provides greater impact protection and is backed by a lifetime factory warranty.

Precision Response Steering

The X3 offers best-in-class steering performance. A dual cable pull-pull steering system eliminates slack, while the innovative patent-pending Variable Ratio Technology reduces torque steer feedback and improves responsiveness. A newly designed and reinforced foot pedal also provides better feel and control.

Variable Ratio Technology

Improves steering response
Reduces torque steer feedback
Dual-cable system eliminates steering slop and noise
Precision bearings and locking collar eliminates shaft clicking

Composite Locking Pins

By improving these frequently worn parts with modern composite materials we have exponentially increased durability at the most common failure point. The all new pins also eliminate annoying metal-on-metal "clicking" which only adds to the already stealthy nature of the X3.

Specifications:

Voltage - Input Range (Volts): 12v
Built-In Transducer: No
Thrust (Pounds): 55 lbs
Shaft Length (Inches): 50"
Salt Water/Fresh Water: Fresh
Mounting Style: Bow
Control Type: Twist Tiller
Autopilot: No
Series: X3
Box Dimensions: 8"H x 24"W x 62"L WT: 40.3 lbs
UPC: 022697200198

Owner's Manual (pdf)

MotorGuide X3-55FW Hand Control Bow Mount - Digital - 55lbs-50"-12V [940200190]
