Edge 45 - Hand Control - 12V-45lb-45"

Don't let the size fool you. Edge's compact mount is built with extruded, anodized aluminum for rugged, no-nonsense strength. Add a rock-solid Latch & Door mount and an impact resistant composite head, and you have a motor that's perfect for smaller boats and big days on the water.

Features:

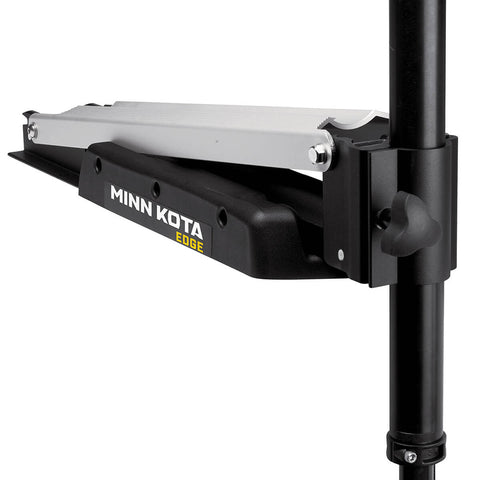

Latch & Door Bracket: This bracket gives you a rock-solid hold while stowing your trolling motor and makes for easy removal at the end of the day.
5-Speed Settings: Choose from five speed settings to dial in the right speed control when you're trolling.

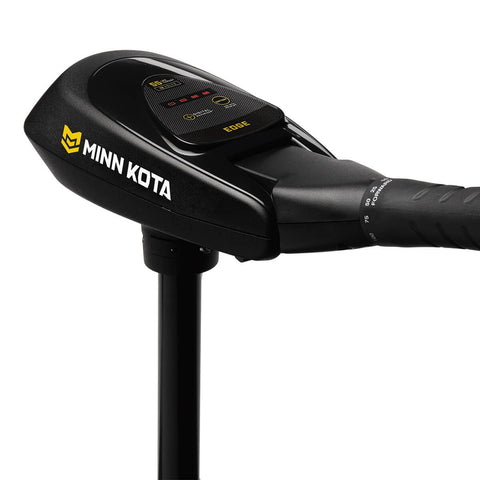

Directional Indicator: Easy-to-read directional indicator is built into the top of the trolling motor head on Edge foot control models.
Power Prop: For 3-1/4" motor diameters, this prop delivers extra power to push throw heavy vegetation. Includes prop pin, nut and washer.
Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructable composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
What's Included: Edge 45 lb. 45" hand-control trolling motor, MKP-2 Prop, Hold Down Strap and Mounting Hardware.

Specifications:

Control: Hand
Volts: 12
Max Thrust: 45 lbs.
Shaft Length: 45"
Speed Control: 5-Speed
Max. Amp Draw: 42
Prop: Power Prop (MKP-2)

Specifications:

Autopilot: No
Control Type: Tilt Twist Tiller
Included Propeller: MKP-2
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: Edge
Shaft Length (Inches): 45"
Thrust (Pounds): 45 lbs
Built-In Transducer: No
Voltage - Input Range (Volts): 12v
Box Dimensions: 9"H x 20"W x 63"L WT: 41 lbs
UPC: 029402047796

Owner's Manual (pdf)
