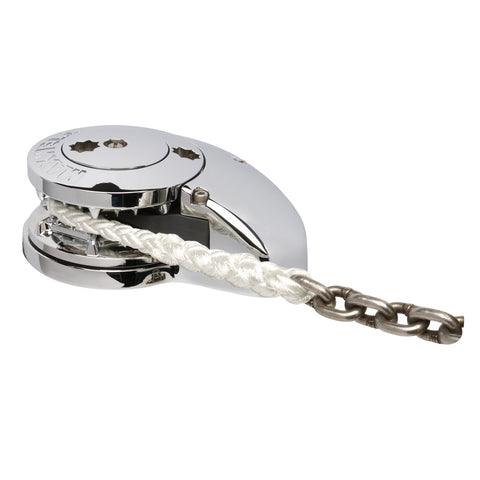

RC10 Automatic Rope/Chain Windlass

Designed for 5/16" chain and 5/8" rope combination
Maximum pull: 1540 lbs
Metric Chain Size: 8mm
Motor Wattage: 1000W
Innovative heavy duty stainless steel pressure arm, coupled with a unique rope/chain gypsy, giving an unparalleled level of performance.
Simple two piece installation, saving time and money and allowing easy retrofitting without disassembly of the windlass.
Manufactured from marine grade chromed bronze for long term durability
The topworks can be fully disassembled utilizing the handle provided, a screw driver and common allen key, making regular service and maintenance a breeze. No special tools required!
A huge, through deck, hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker
Not only does the RC10 effortlessly handle combination rope/chain rodes, it works just as well with all chain rodes for those who may want the extra security of an all chain systems combined with an elegantly styled, low profile windlass on their foredeck.
Exclusive Maxwell 3 Year Limited Warranty ensuring your confidence that you are getting the best product on the market.

Specifications:

Chain - Diameter (Inches): 5/16"
Freefall: Yes
Rope Diameter (Inches): 5/8"
Vertical/Horizontal: Vertical
Box Dimensions: 11"H x 17"W x 20"L WT: 50 lbs
UPC: 1000000004267

Quick Guide (pdf)
Brochure (pdf)

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

Maxwell RC10/8 12V Automatic Rope Chain Windlass 5/16" Chain to 5/8" Rope [RC10812V]
