The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC6

Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
High efficiency spur gearbox incorporating a robust non-backwind mechanism
High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
Emergency "free fall" function in the event of onboard power failure
Revolutionary new chainwheel - see over
Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance
Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor
Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection

Specifications:

Model: HRC6
Maximum Pull: 900lbs
Chain Short Link: 1/4"
Rope Size (Nylon): 1/2"
Line Speed(Anchor Retrieval): 108'/min
Power Supply(DC): 12V or 24V
Motor Power: 600W
Net Weight: 25lbs

Specifications:

Chain - Diameter (Inches): 1/4"
Freefall: Yes
Rope Diameter (Inches): 1/2"
Vertical/Horizontal: Horizontal
Box Dimensions: 10"H x 14"W x 15"L WT: 29 lbs
UPC: 1000000002744

Brochure (pdf)

Note: This product is supported by the original U.S. manufacturer. In case of a proven defect, returns remain possible under our standard return policy, but resolution may involve direct coordination with the manufacturer.

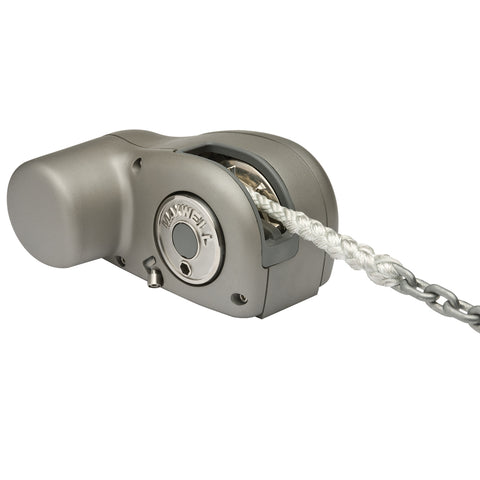

Maxwell HRC6 12V Horizontal Freefall Rope/Chain Series 1/4" Chain 1/2" Rope [HRCFF612V]
