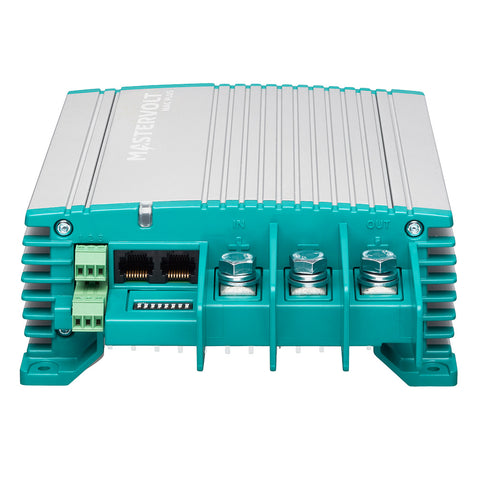

Mac Plus 24/24-30 + CZone

Boost the Service Battery

Too often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to the service battery. And, by knowing when the engine is running and providing charge, users can be sure that the Mac Plus will never drain a starter battery.

Proven Mastervolt Quality

Users get peace of mind knowing that they have the best on board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries.

A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and a high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.

Total Power Flexibility

With a wide DC input range, the Mac Plus allows for all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.

Parallel configuration of up to ten units will provide over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.

Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.

Superior Monitoring & Control

Compatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.

Features:

Fast and safe charging, even during short trips
Fanless design for silent operation
Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4)
Even charges fully depleted batteries
Engine run detection protects the starter battery
Adjustable current limits to meet Euro 5/6 requirements
Voltage stabilization protects sensitive equipment, lights, and loads
Parallel operation to obtain charging capacities well over 100 Amps
MasterBus, CZone, and NMEA 2000 are compatible for intelligent system monitoring and automation
Temperature compensation and voltage sense for an optimal charging result
E-Mark/R10 certification for mobile applications
Power supply mode offers stable power for sensitive loads
Heavy-duty connections for easy installation and quick setup via DIP switches

Specifications:

Battery Temperature Sensor: Yes, included
Battery Voltage Sense: Yes

General Specifications:

Status Indicator: Yes, 3-color LED
Communication Protocol: MasterBus, CZone & NMEA 2000
Output Voltage: 20-30 V
Nominal Output Voltage: 24 V
Output Voltage Stabilization: 2 % at extremes of temperatures, load, and input
Output Voltage Ripple (peak-peak): Max. 1 %
Max. Output Power: 850 W
Nominal Output Power: 810 W
Max. Output Current: 30 A
Output Charge Current (3-step mode): 30 A
Nominal Input Voltage: 24 V
Input Voltage Range: 19-30 V
Max. Input Current: 30 A
Galvanic Isolation: No
Voltage Limited: Yes
Efficiency: > 95 % (at nom. input voltage, full load); peak 97
Parallel Configuration: Yes
Alarm Contact: Yes, through MasterBus
MasterBus Powering: No
Engine Run Signal Input: Yes (active high/active low)
DIP Switches: Yes, for basic setup
Dimensions, H x W x D: 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch)
Weight: 2 kg (4.4 lb)
Compliance: CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected

Technical Specifications:

No-load Consumption: < 2 mA
Charge Characteristic: 3-traps+
Battery Types: Flooded, Gel, AGM, spiral, Lithium Ion, traction, user-defined
3-Step Charge Option: Yes (DIP switch settings)
DC Consumption: < 5 mA
Connections: 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement
Temperature Range (ambient temp.): -25 degrees C to 60 degrees C; derating > 40
Cooling: Natural cooling
Protections: Overload, over temperature, DC short circuit, reversed polarity (fuse)
MasterBus Compatible: Yes

Specifications:

Charger Input - Voltage: 24v
Charger Output - Amps: 30a
Charger Output Voltage: 20-30v
Box Dimensions: 4"H x 9"W x 15"L WT: 5.65 lbs
UPC: 816882023521

Owner's Manual (pdf)

Mastervolt Mac Plus 24/24-30 + CZone [81205405]
