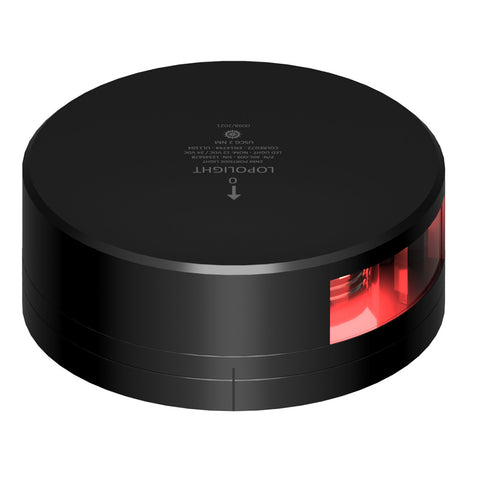

Red Port Light - 2NM - Black Housing with FB Base

This red port light has black housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

Black anodized aluminum housing
2.5m cable is included

Specifications:

Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Mounting: Horizontal
EAN: 5704438043862
Min. Feed Wire Gauge: 0.5mm² AWG22
Light Color: Red
Visibility: 2NM
Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating: IP68
Connection: 2.5m cable
Current Consumption (mA @ 24VDC): 50
Current Consumption (mA @ 12VDC): 90
Dimensions Metric: Ø92.5mm x 36mm
Dimensions Imperial: Ø3.6" x 1.4"
Operating Temperature: -25 degrees C to 55 degrees C
Operating Voltage: 10-32VDC
Power Draw (W): 1.2
Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Specifications:

Housing: Black
Visible Range (Miles): 2NM
Voltage - Input Range (Volts): 10 - 32
Box Dimensions: 4"H x 4"W x 4"L WT: 1.4 lbs
UPC: 879343043995

Quick Guide (pdf)

Lopolight Red Port Light - 2NM - Black Housing w/FB Base [301-009-FB-B]
