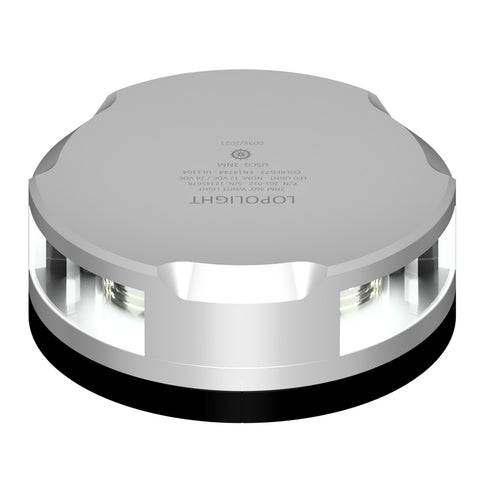

Masthead/360-Degree Light - 3NM - Silver Housing with FB Base

This white 360-degree/masthead light has a silver housing, is horizontally mounted, and has a three-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

Silver anodized aluminum housing
0.75m cable is included

Specifications:

Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Mounting: Horizontal
EAN: 5704438043534
Min. Feed Wire Gauge: 0.5mm² AWG22
Light Color: White
Visibility: 3NM
Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating: IP68
Connection: 0.75m cable
Current Consumption (mA @ 24VDC): 148
Current Consumption (mA @ 12VDC): 300
Dimensions Metric: Ø92.5mm x 36mm
Dimensions Imperial: Ø3.6" x 1.4"
Operating Temperature: -25 degrees C to 55 degrees C
Operating Voltage: 10-32VDC
Power Draw (W): 3.6
Vessel Size: Under 12-20 meters

Specifications:

Housing: Silver
Visible Range (Miles): 3NM
Voltage - Input Range (Volts): 10 - 32
Box Dimensions: 3"H x 3"W x 3"L WT: 1.15 lbs
UPC: 879343043667

Quick Guide (pdf)

Lopolight Masthead/360-Degree Light - 3NM - Silver Housing w/FB Base [201-021-FB]
