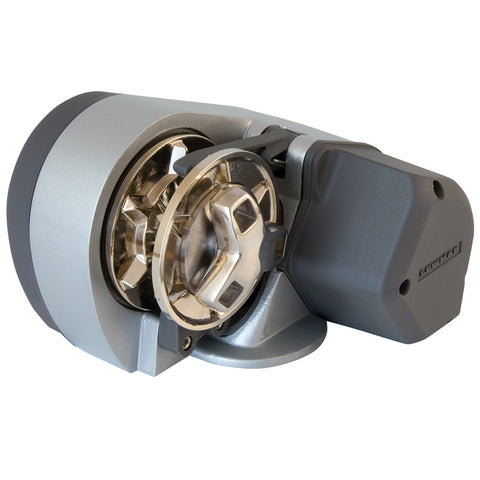

Pro-Sport 550G Horizontal Windlass Kit - 12V

Lewmar’s Pro-Sport windlass is designed as an economical package for rope and chain applications, without compromise on quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors.

Its rugged aluminum center case and durable composite side covers make Pro-Sport the perfect choice. Complete with push-button control, anchoring has never been easier.

Features:

Low power consumption / current draw
Dual direction powered operation
Convenient above-deck installation
Manual freefall
DIY ready

Technical Specifications:

Chain Size - 1/4" G4 or BBB
Rope Size - 1/2" 3-strand or 8-plait
Motor Voltage - 12 Volt DC
Motor Power - 150 Watt
Maximum pulling power - 550lb (250kg)
Maximum Working Load - 137lb (62.12kg)
For boats up to 28' (9M)

In the Box:

Windlass
Base gasket
Mounting hardware
Circuit breaker
Contactor
Rocker switch
Instruction manual

*Sold as an Individual

Owner's Manual (pdf)

Lewmar Pro-Sport 550G Horizontal Windlass Kit - 12V [6656811967-303]
