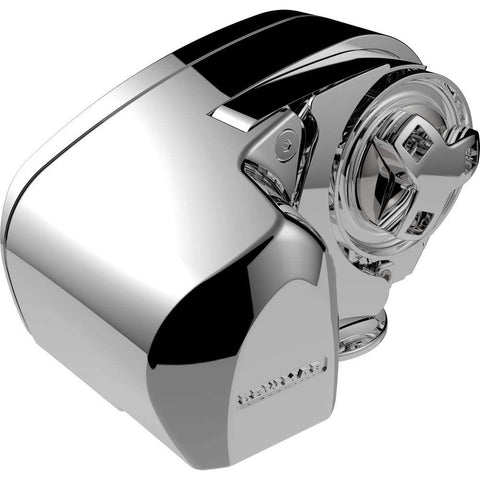

Pro-Series Horizontal 1000H Windlass Kit - 12V

Praised by professionals worldwide, the horizontal Pro-Series is a shining example of Lewmar's commitment to providing quality products for boats. It's DIY-ready, easy to install, and housed in 100% 316 stainless steel, making it well protected and durable and with push-button control and a built-in manual emergency recovery system.

Anchoring has never been easier.

Features:

Powerful motor providing fast line speed
Manual emergency recovery equipped
Convenient above-deck installation

Technical Specifications:

Material - Stainless Steel
Maximum Pull - 1,000lbs
Maximum Line Speed - 88'/min
Maximum Chain Size - 5/16"
Maximum Rope Size - 5/8"
Power - 12 V
Maximum Boat Length - 38'
Mounting Position - Horizontal

In the Box:

Windlass
Switch
Circuit breaker
Dual direction contactor/solenoid
Instruction manual

*Sold as an Individual

Specifications:

Chain - Diameter (Inches): .45
Freefall: Yes
Rope Diameter (Inches): .65
Vertical/Horizontal: Horizontal
Box Dimensions: 10"H x 10"W x 18"L WT: 20 lbs
UPC: 743683319891

Owner's Manual (pdf)

Lewmar Pro-Series Horizontal 1000H Windlass Kit - 12V [6657011108-102]
