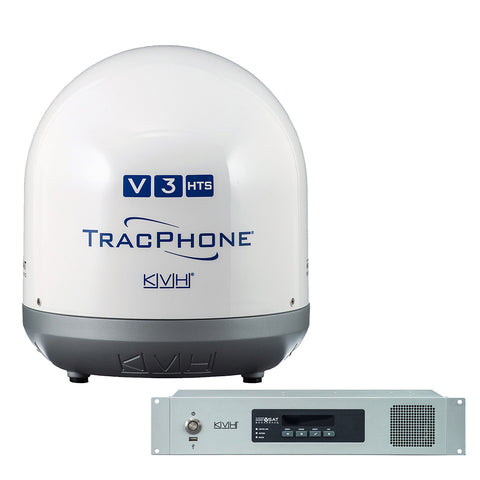

TracPhone® V3HTS

World’s fastest, lightest ultra-compact marine VSAT.

The rugged 37 cm TracPhone V3 hts offers global connectivity and crystal-clear voice calls via advanced next-generation high-throughput satellites (HTS) from Intelsat and SKY Perfect JSAT on the mini-VSAT Broadband SM HTS network. The result is an ultra-compact SATCOM solution that outperforms the leading competing 60-85 cm Ku-band antennas.

Features:

Ultra-high efficiency antenna using KVH’s RingFire™ design and groundbreaking dielectric rod feed ensures excellent Ku-band reception even in bad weather
Advanced antenna controller for high-speed tracking
Dynamic, gyro-stabilized system seeks the optimum satellite within the mini-VSAT roadband HTS network and tracks it through the full dynamic motion experienced at sea
The powerful ICM, with its high-throughput modem, Voice over IP (VoIP) adapter, versatile network management software, and built-in Wi-Fi and Ethernet, is the streamlined all-in-one belowdecks unit that drives the TracPhone V3hts

Service:

Network: mini-VAST Broadband HTS Network
Antenna Type: Ku-band
Service Coverage Area: Seamless Worldwide Regions

Specifications:

Speed - Max: 6 Mbps/2 Mbps (down/up)
Wireless: Yes
Box Dimensions: 21"H x 24"W x 39"L WT: 74.3 lbs
UPC: 028327013572

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

KVH TracPhone V3-HTS Ku-Band 14.5" mini-VSAT [01-0418-11]
