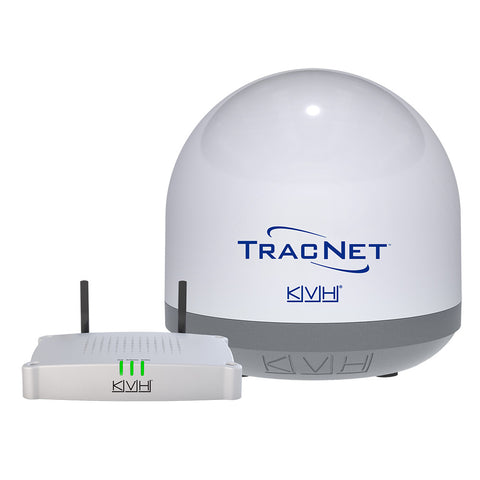

TracNet Coastal Pro 5G/WiFi Compact Terminal with TracNet Hub

Are you looking for faster and more affordable data to support business and personal connectivity? Would you like to experience home-like content streaming on your boat? Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!

Features:

5G/LTE and WAN WiFi in a compact radome
Integrated cellular//WiFi system with intelligent hybrid switching
High-gain 5G cellular antennas for extended offshore coverage
Single-cable, DC-powered maritime design (TracNet Hub)
Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
Data plans starting as low as $1/GB (subject to change)
Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
Marine-grade, compact antenna
Single-cable antenna installation with ultra-efficient DC power design
Hybrid hub functionality to intelligently and automatically switch between 5G, WiFi, and as many as two additional third-party antenna (Starlink, OpenNet, etc.)
Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more
Belowdeck WiFi 5 Access Point (AP), supporting dual-simultaneous WAN and LAN WiFi
4-port ethernet router
Remote SIM technology, supporting up to two user-supplied SIM cards with convenient below-deck access

Technical Specifications:

Dome Dimensions - 13.5" (Dia.) x 13.1" (H)
Dome Weight - 8 lbs
Dome Operating Temperature - -25°C to +55°C (-13°F to +131°F)
Dome Survival Temperature - -30°C to +70°C (-22°F to +158°F)
Below Deck Unit (BDU) Ethernet Ports - 4, Configurable as Starlink WAN/ Backup WAN/User WAN
Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option
Power Consumption (Nominal/Max) - 16W/22W
BDU Operating Temperature - -15°C to +55°C (+5°F to +131°F)
BDU Survival Temperature - -25°C to +70°C (-13°F to +158°F)
Intelligent Connection Switching Number of WANs Supported - 4 Cell/WAN Wi-Fi/Starlink/Backup WAN

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

KVH TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub [01-0465]
