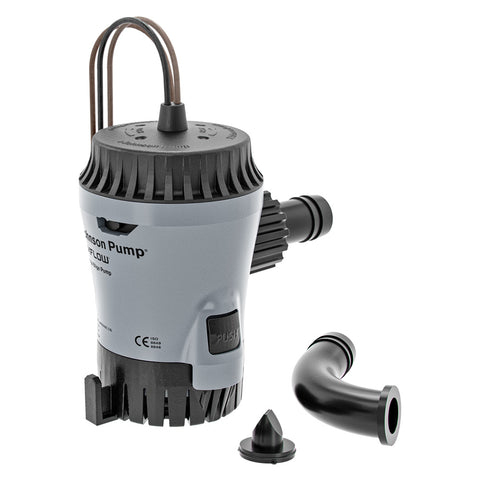

Aqua Void Automatic 500 GPH Bilge Pump - 12V

With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it's convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.

Experience the Industry-First Quick-Change Motor Connection

Johnson Pump's groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Take Control of the Boating Experience with Unparalleled Convenience

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Enjoy Enhanced Efficiency and Higher Flow Rate

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Trust in Reliable Performance Under Demanding Conditions

Johnson Pump Marine is renowned for its industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don't miss this opportunity to enhance the boating experience. Get the Aqua Void today!

Features:

High-flow impeller design
Quick-change motor connection
Switchless automatic bilge pump with low-amp resistance monitoring
Durable thermoplastic housing design commonality with removable motor cartridge
Smaller profile than pumps with switches
Straight or 90-degree dura port discharge ports with an included check valve
Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
Clip-in basket

Benefits:

Heightened efficiency and an increased flow rate
Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
Automatically monitors the presence of water through low-amp draw impeller spin
The common body allows interchangeable motor cartridge replacement to the same or different size
For tighter fit in smaller spaces
Allow multi-directional hose routing, eliminate stress cracking without disengaging hoses or removing pumps, and reduce cycling from water backflow
Corrosion-resistant and extended life

Competitive Advantages:

The most efficient and highest flow in the GPH capacity category
Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
100 days of service before critical battery draw down*
Automatically monitors the presence of water through low-amp draw impeller spin
Ease of installation & maintenance

Specifications:

Pump Size: 500 GPH
Capacity Straight (12V): 600 GPH (38 I/min)
Voltage: 12V
Amp: 2.7A
Fuse: 3.5A
Hose Connection: 3/4 in.
Wire Size: 16 GA, TINNED
Weight: 11.2 oz (0.32 kg)
Body: ABS
Dura Port: PA66/GF - Nylon
Shaft: 316 Stainless Steel
Shaft Seal: Nitrile Rubber
Motor Cartridge: PC-ABS
Pump Dimensions (W x H x L): 2.75 x 4.69 x 5.24 inches (70 x 119 x 133 mm)

Specifications:

Gallons Per Hour: 500 GPH
Operation: Automatic
Outlet Size: 3/4"
Type: Pumps/Drives
Volts: 12v
Box Dimensions: 4"H x 5"W x 6"L WT: 1.2 lbs
UPC: 7330717018184

Quick Guide (pdf)
